EickLoxx small osteosynthesis system,Titanium, plates+screws, multidirectionally lockable

https://www.eickemeyer.de//web/image/product.template/14210/image_1920?unique=3ce0691

£ 0.00 0.0 GBP £ 0.00

€ 6,495.00

Price visible after login

Item No. 185500

    This combination does not exist.


    The EickLoxx Small is a polyaxial locking kit for dogs and cats up to 15 kg.

    The system distinguishes itself through the polyaxial placement of the custom-fit screws, combining the advantages of a locking plate system with polyaxial screw placement in +-15° longitudinal and transverse pivoting.

    Compared to conventional osteosysnthesis systems, the use of internal fixation locking systems (internal fixaction) such as the EickLoxx Small facilitates faster healing of fractures and improved implant strength. It is for this reason that the removal of plates and screws is rarely indicated.

    The biologically advantageous Titanium plates are available in three sizes, can be cut to the desired length and be bent in three planes. Specially designed tools are included to perform this. Titanium also reduces artefacts in post-operative imaging. The 46/41-hole bone plates can be locked either or in combination with 1.7 mm and 2.3 mm screws. The 28-hole bone plate can be locked with either 2.7 mm or 3.5 mm screws from the EickLoxx Large or the EickLoxx TPLO system.

    EickLoxx Small is a modular system. All implants and instruments are made in Germany using only the highest quality materials.

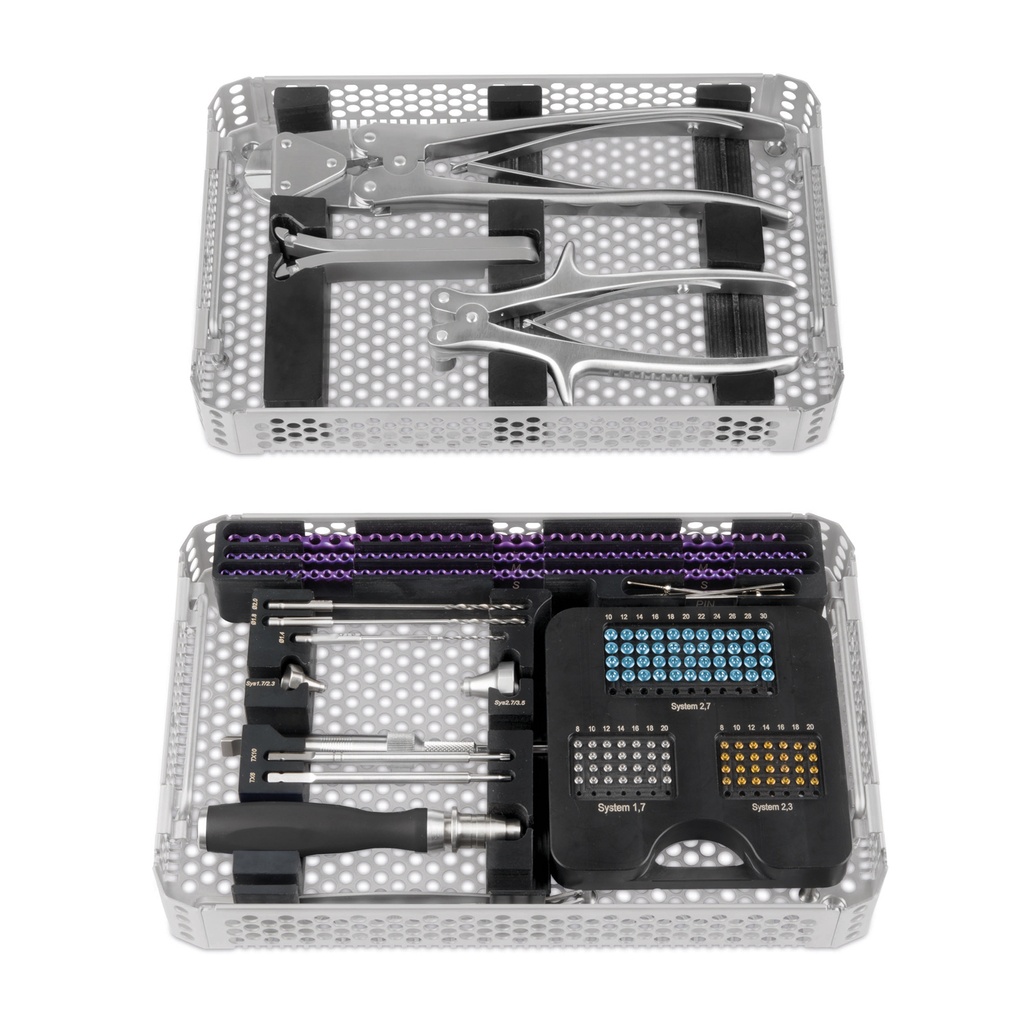

    Set includes:

    • Eickloxx Small Instrument Tray
    • Eickloxx Small Implant Tray
    • Eickloxx Small Screw Rack
    • TAURUS Plates and Wire Cutting Pliers
    • Plate bending Pliers with Rollers
    • Eickloxx Bending Levers (Pair)
    • 3 Twist Drill with AO quick coupling (Ø 1.4 mm, Ø 1.8 mm & Ø 2.0 mm)
    • 2 Screwdriver blades (Torx 6 & Torx 10)
    • 2 Drill-Guide Funnel System (1.7 / 2.3 & 2.7 / 3.5 )
    • Plate and Screw Holding Forceps
    • Silicone Screwdriver Handle
    • 4 Plate Positioning Pin (Ø 1.4 mm, Length 63 mm)
    • Depth Gauge
    • Eickloxx Small Bone Plate 46 Hole, System Ø1.7/2.3 (L 230mm x 5.0 x 2.4mm)
    • Eickloxx Small Bone Plate 41 Hole, System 1.7 / 2.3 (L 225 x W 6.5 x H 2.4 mm)
    • Eickloxx Small Bone Plate 28 Hole, System 2.7 (L 224 x W 8 x H 2.7 mm)
    • 28 Titanium Locking Screw Ø 1.7, Torx 6 (Length 8 mm to 20 mm)
    • 28 Titanium Locking Screw Ø 2.3, Torx 6 (Length 8 mm to 20 mm)
    • 44 Titanium Locking Screw Ø 2.7, Torx 10 (Length 10 mm to 30 mm)
    • Container dimensions (L 312 x W 183 x H 122 mm)
