The essential polyaxial osteosynthesis system for small animals up to 15 kg
The EickLoxx Small Starter Kit is a cost-effective basic set designed for users and distributors with limited budgets. It includes all the absolutely necessary instruments and two screws of each size and diameter for the bone plates.
The bone plates, which can be cut to size according to the findings, are available in three sizes. They are not included in the basic set. The appropriate bone plate size can be added as needed.
Like all EickLoxx Small components, the Starter Kit is based on a polyaxial, angle-stable screw concept that combines the advantage of secure multidirectional locking with the flexibility to insert screws at an angle of up to ± 15°. This allows for optimal screw placement, even in challenging fractures.
By using biocompatible titanium alloys, a reduced periosteal contact area, and a modular system structure, the EickLoxx Small promotes rapid fracture healing, high implant stability, and minimizes bone perfusion disturbances.
The Starter Kit is fully modular and compatible with all components of the EickLoxx Small system. Instruments and implants are manufactured in Germany using high-quality materials.
Features
- Polyaxial, angle-stable system for dogs and cats up to approximately 15 kg (33 lbs)
- Allows multidirectional screw insertion up to ± 15°
- Titanium implants for maximum biocompatibility and reduced artifacts in imaging procedures
- Minimized periosteal contact to preserve bone perfusion
- Reduces the risk of infection and promotes accelerated healing
- Modular design, expandable, and compatible with all EickLoxx Small components
- Instruments made of robust, durable materials
-
Ideal as a basic set for beginners, clinics with smaller budgets, or as a mobile kit Technische Eigenschaften
-
Titanlegierung für höchste Biokompatibilität
- Multidirektionale Verriegelung, bi- und monokortikal
- Optimierte Geometrie für hohe Festigkeit
- Biegbar in drei Ebenen (bei entsprechenden Platten)
- Abriebfrei, da keine Reibverschlüsse entstehen
- Kompatibel mit Schrauben Ø 1,7 mm, Ø 2,3 mm und Ø 2,7 mm
Biologische Vorteile
- Reduzierter Schaden an der Gefäßversorgung
- Beschleunigte Knochenheilung
- Hohe Resistenz gegen Infektionen dank Titan
- Reduzierte Artefaktbildung bei röntgenologischer Nachkontrolle

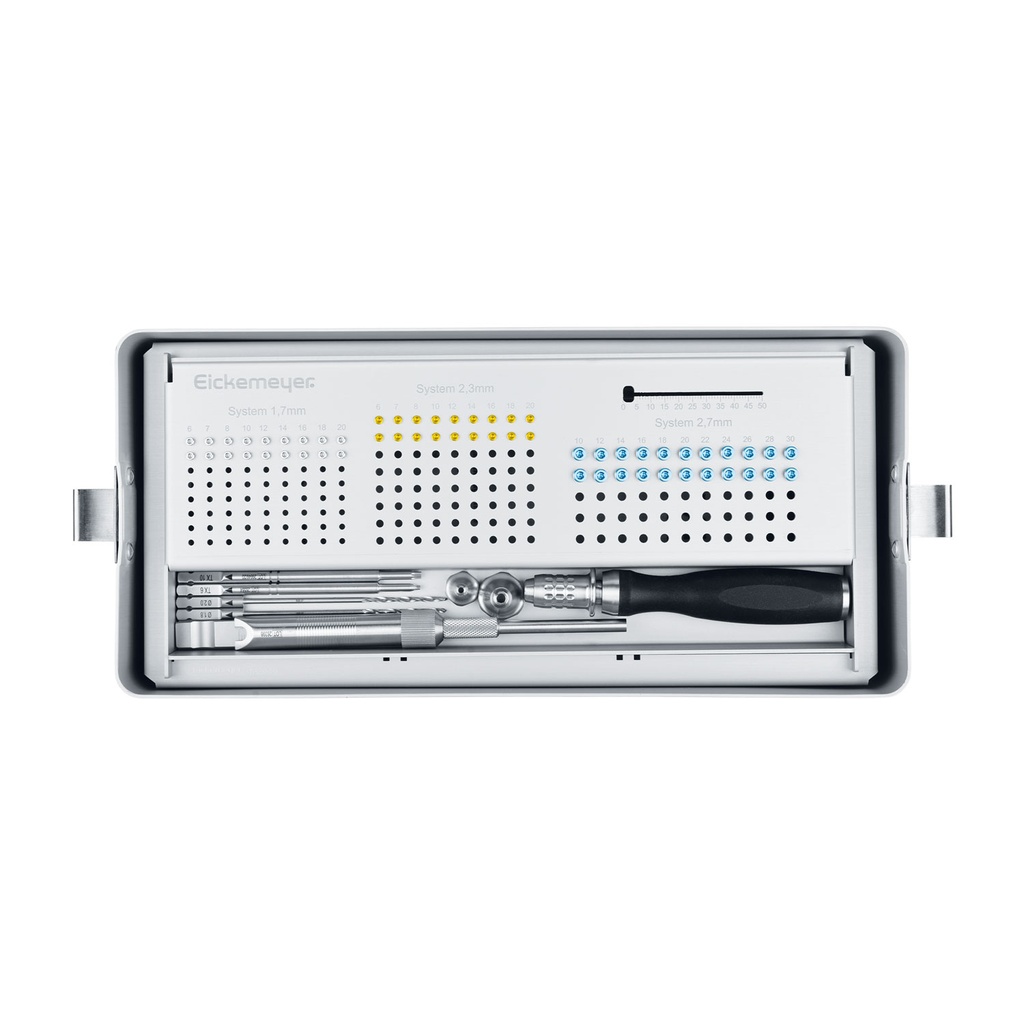

Set enthält:

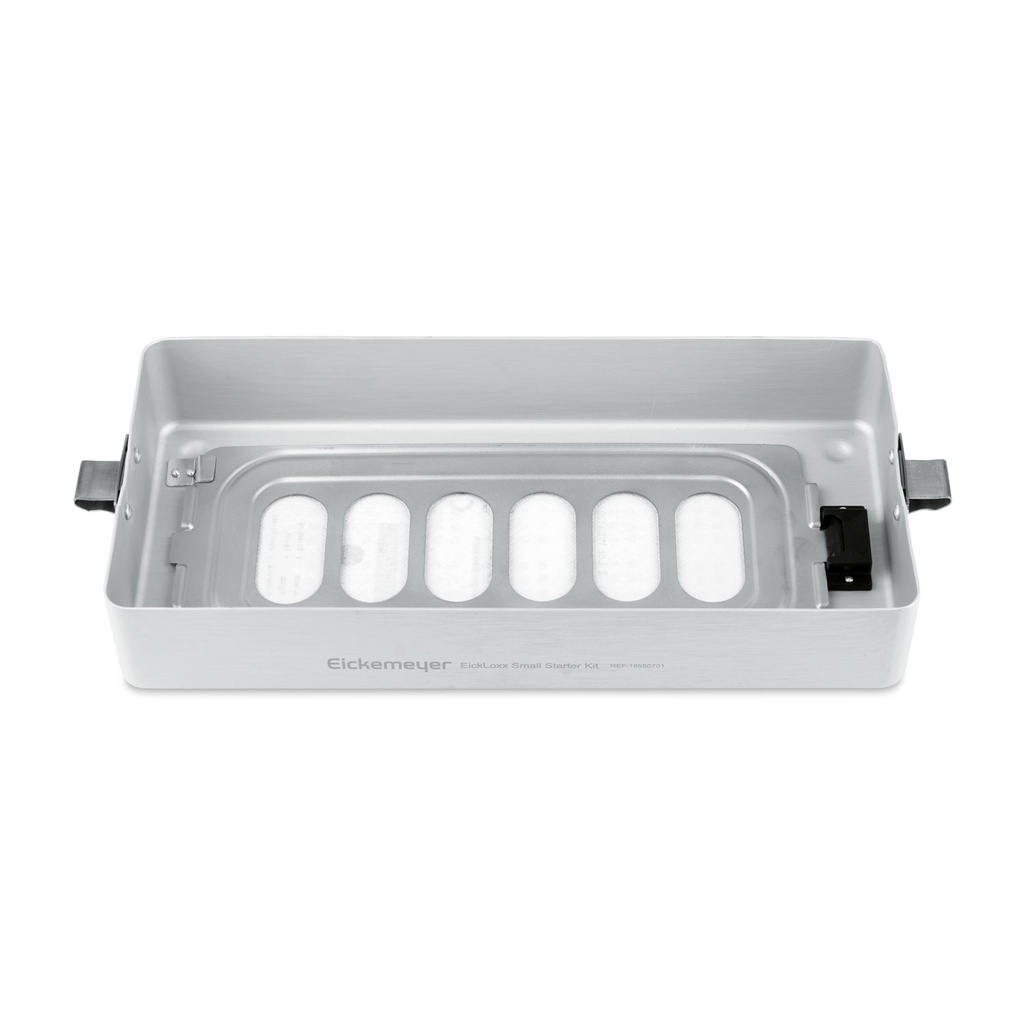

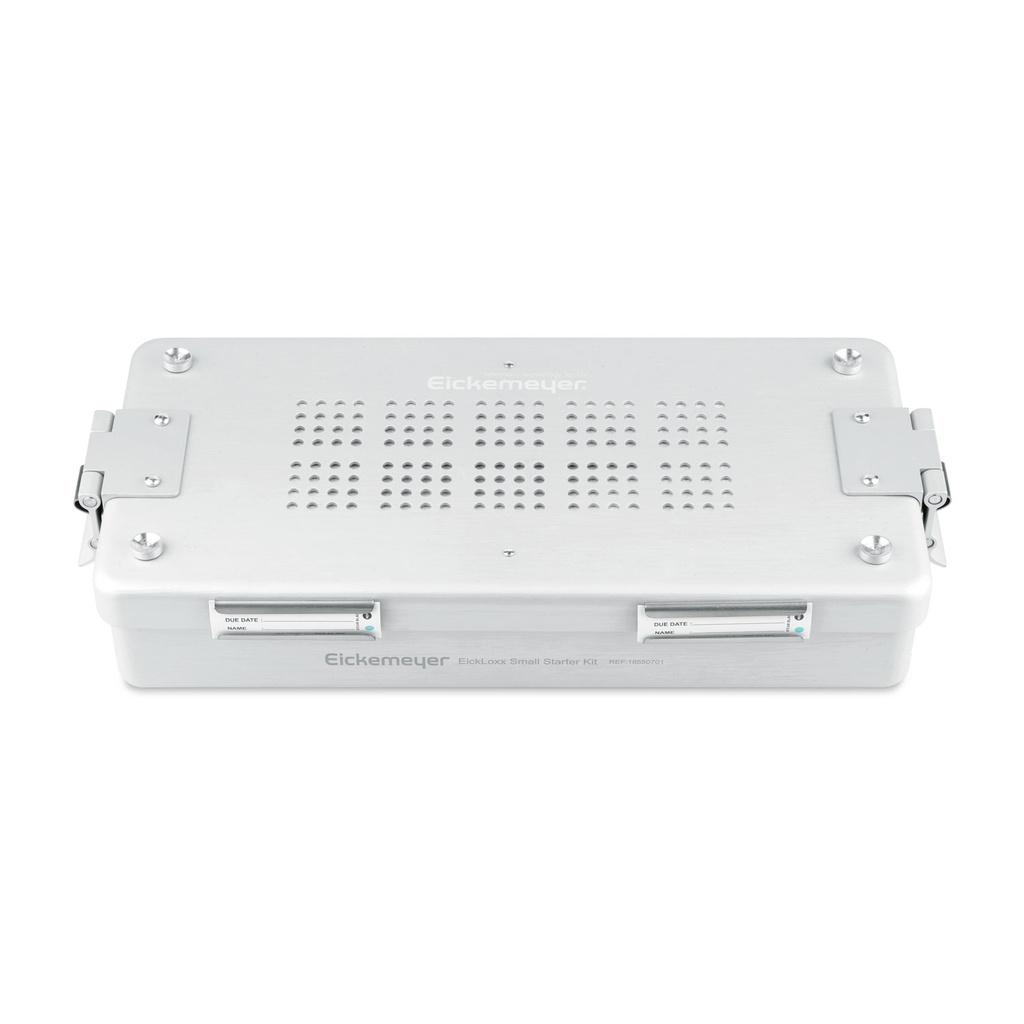

Sterilbehälter
- 500615 – Bodenteil für Sterilbehälter, perforiert, Textilfilter, silber
- 500710 – Deckel für Sterilbehälter, perforiert, Textilfilter, silber
Instrumente

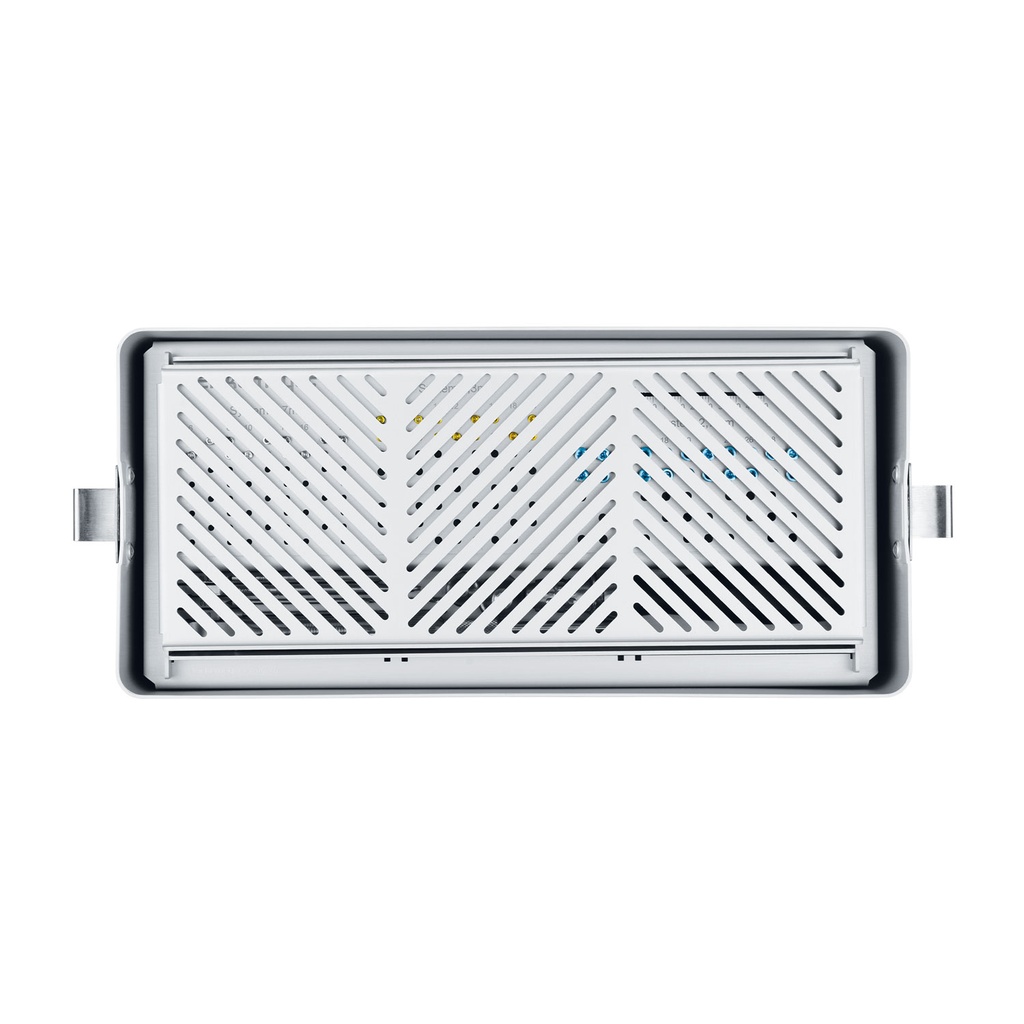

- 188018 – Schraubenbänkchen mit Deckel, Aluminium, eloxiert, silber
- 188019 – Rahmen für Schraubenbänkchen
- 185507 – Spiralbohrer Ø1,4 mm (für Schrauben Ø1,7 mm)
- 185508 – Spiralbohrer Ø1,8 mm (für Schrauben Ø2,3 mm)
- 185509 – Spiralbohrer Ø2,0 mm (für Schrauben Ø2,7 mm)
- 185510 – Schraubendreherklinge Torx 6, L 90 mm
- 185511 – Schraubendreherklinge Torx 10, L 90 mm
- 185515 – Schraubendreherhandgriff aus Silikon, kanuliert
- 185512 – Bohrlehren-Trichter-System 1,7 / 2,3
- 185513 – Bohrlehren-Trichter-System 2,7 / 3,5 / 4,0
- 185516 – Platten-Positionierstift Ø 1,4 x 63 mm
- 187737 – Tiefenmesslehre, Messbereich 50 mm
Optional sind die Instrumente zum Schneiden und zum Kontourieren der Knochenplatten-Implantate
- 185504 – TAURUS Platten- und Drahtschneidezange
- 185505 – Plattenbiegezange mit Rollen
- 18550602 – EickLoxx Small Kreuzschlitz-Schänkeisen, links
- 18550601 – EickLoxx Small Kreuzschlitz-Schänkeisen, rechts
Implantate – Knochenplatten
- 185518 – EickLoxx Small Knochenplatte, 46-Loch, System 1,7/2,3, Titan, magenta
- 185519 – EickLoxx Small Knochenplatte, 41-Loch, System 1,7/2,3, Titan, magenta
- 185520 – EickLoxx Small Knochenplatte, 28-Loch, System 2,7/3,5, Titan, magenta
Implantate – Verriegelungsschrauben, selbstbohrend, selbstschneidend
- Ø 1,7 mm – Torx 6 – silber 6 mm, 7 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
- Ø 2,3 mm – Torx 6 – silber 6 mm, 7 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm
- Ø 2,7 mm – Torx 10 – hellblau 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 22 mm, 24 mm, 26 mm, 28 mm, 30 mm
Literature:
-
Perren SM – Evolution of the internal fixation of long bone fractures. The scientific basis of biological internal fixation: choosing a new balance between stability and biology. J Bone Joint Surg Br. 2002 Nov; 84(8): 1093–110.
-
P. Cronier et al. – The concept of locking plates. Orthopaedics & Traumatology: Surgery & Research (2010) 96S, S17–S36.
