Bone Anchor Set

Highest pullout strength for precise, safe ligament and tendon reconstruction

The Bone Anchor Set is an innovative, screw-thread-based anchor system for veterinary ligament and tendon reconstruction in small animals. It impresses with maximum stability, precise placement, and a sophisticated design for safe application, specifically adapted to different animal sizes, from cats to large dog breeds.

Features

• High pullout strength: Significantly exceeds traditional hook anchors and other anchor systems
• Titanium material: Ensures high biocompatibility and infection resistance
• Self-drilling & self-tapping: Easy handling after initial perforation with a KIRSCHNER wire
• Versatile screw sizes: Diameters from 1.3 mm to 2.8 mm, available in various lengths

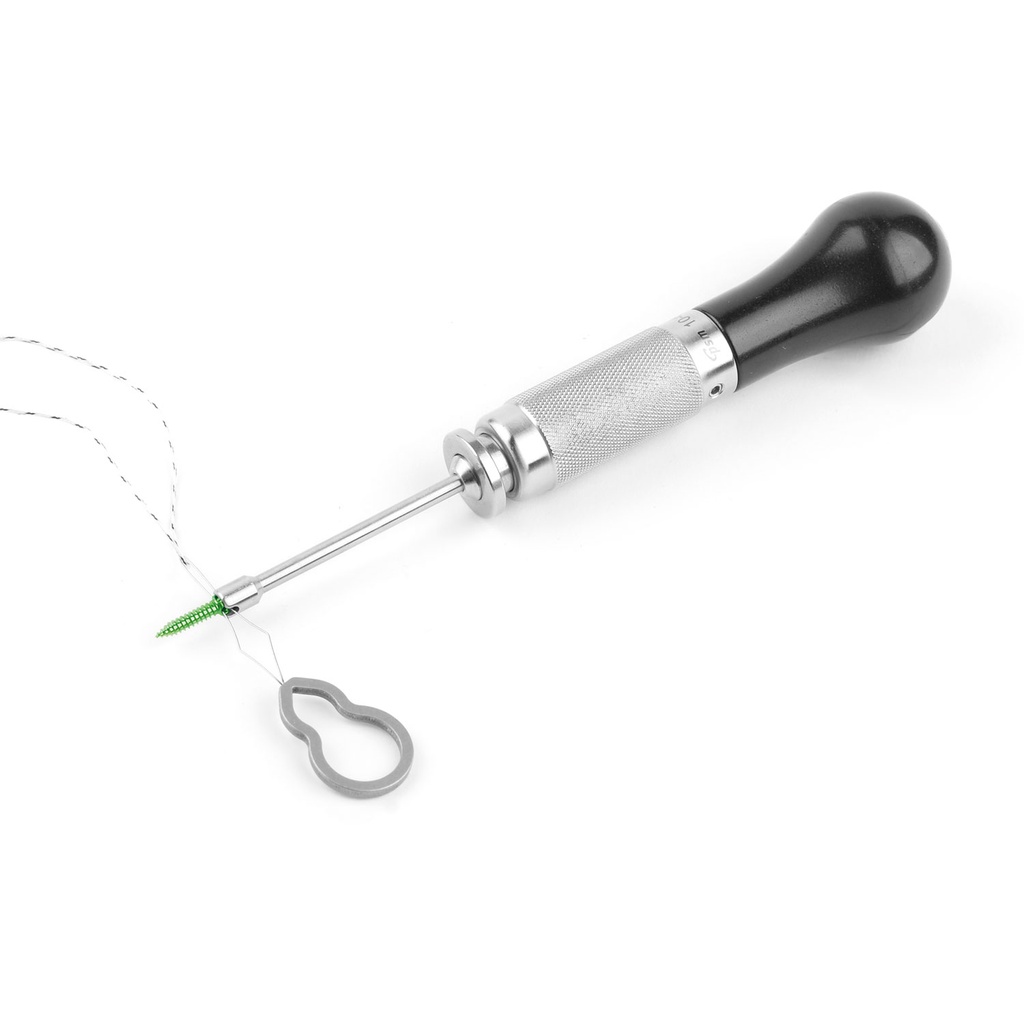

• Double-head drilling: Allows the insertion of multiple sutures through the same anchor head – pre- or intraoperatively using the threading aid
• Rounded head design: Minimizes the risk of foreign body reactions – in contrast to conventional, classic screw heads with washers

Areas of application

Ideal for collateral ligament replacement in:

• Carpus
• Tarsus
• Elbow
• Knee

Benefits at a glance

• Precise anchorage: Precise fixation in the metaphyseal position is possible
• At least two sutures are threaded through the anchor head Cross-shaped thread can be inserted through the double eyelet in the anchor head
• Free choice of monofilament or polyfilament thread: the thread thickness is based on the animal size, tissue type, and location
• High stability with minimal invasiveness

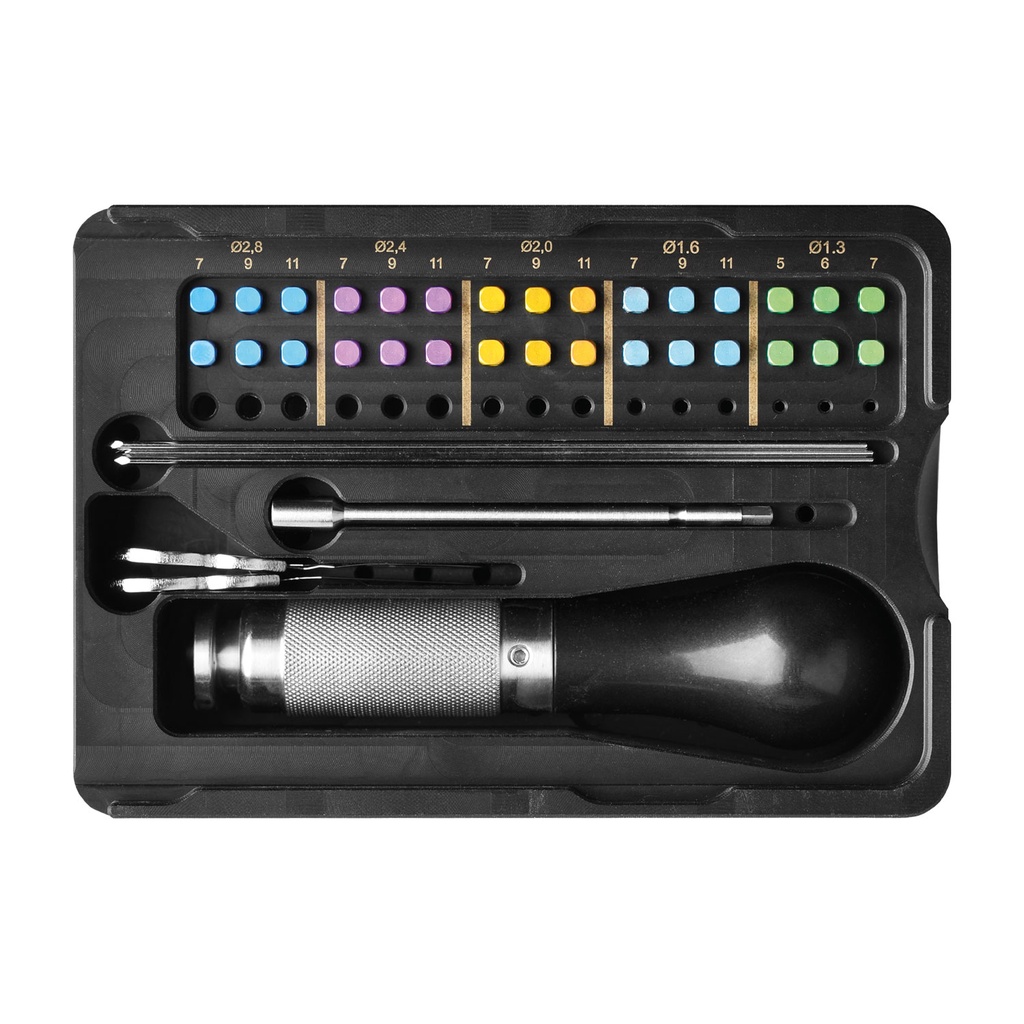

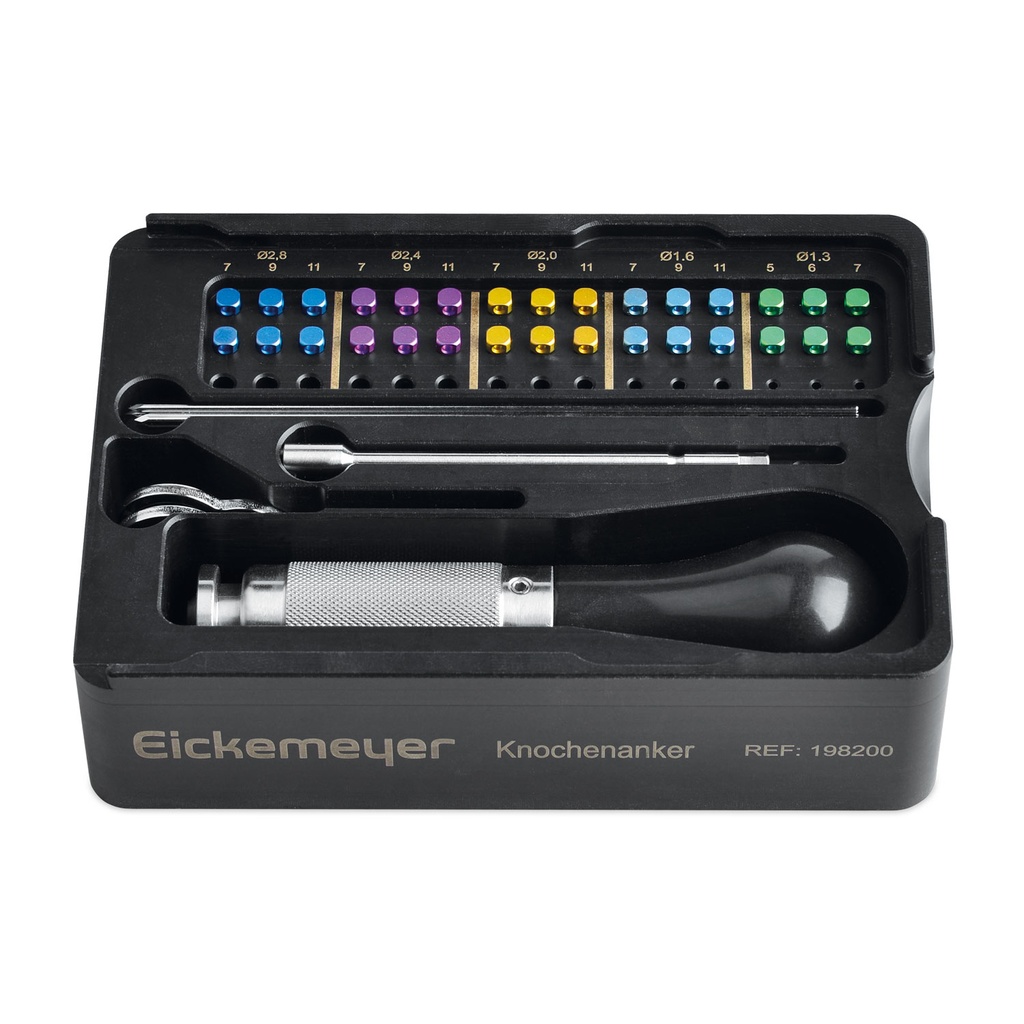

Set contains:

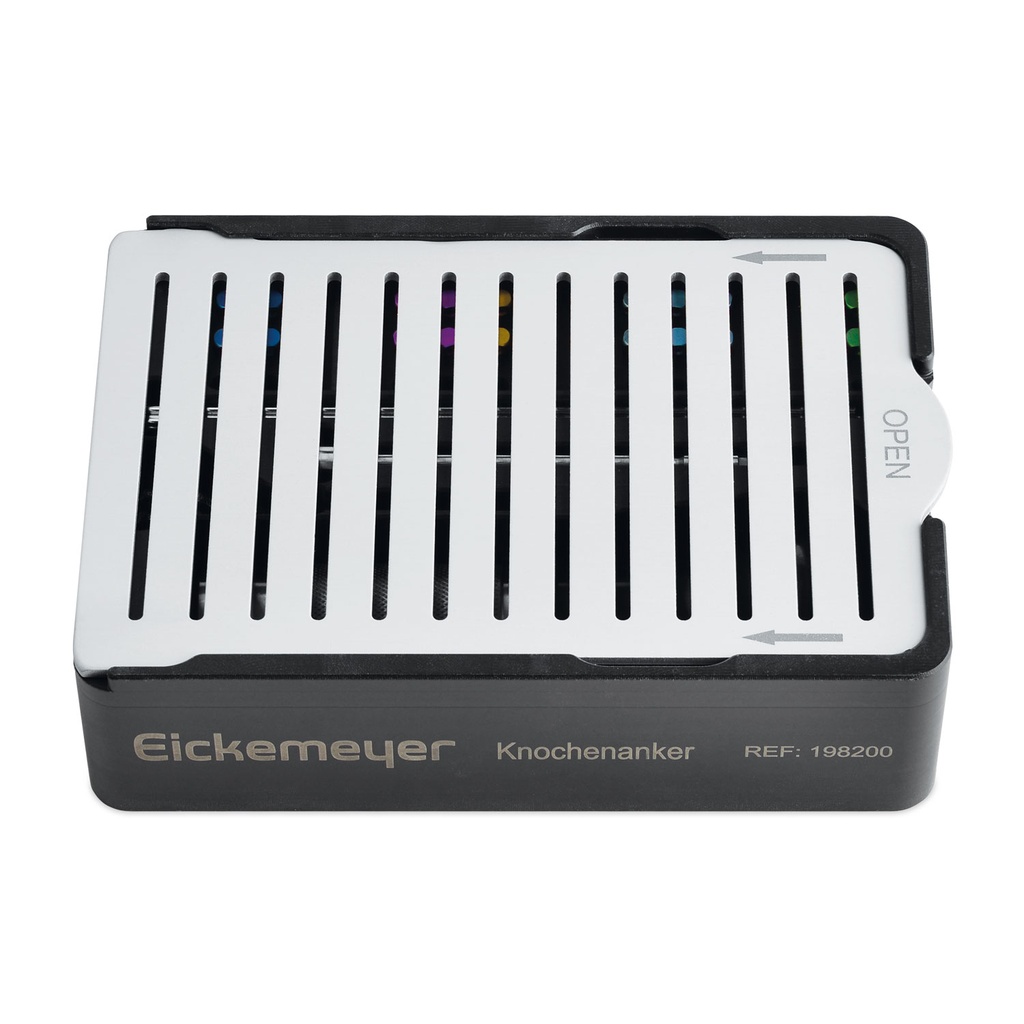

• Bone anchor module with lid (dimensions in mm: 120 × 80 × 32) – without screws or instruments.
• Screwdriver handle, HEX 2.5 (length: 95 mm, black).
• Screwdriver blade, HEX 2.5 (length: 68 mm).
• Suture puller.
• 5 KIRSCHNER drill wires, Ø1.2 × 100 mm, trocar/blunt.

Bone anchor screws, self-drilling and self-tapping, titanium, with double eyelet and rounded screw head:

• Ø1.3 mm / eyelet Ø1.1 mm (green). Lengths 5 mm, 6 mm, 7 mm – 2 pieces each
• Ø1.6 mm / eye Ø1.1 mm (light blue): Lengths 7 mm, 9 mm, 11 mm – 2 pieces each
• Ø2.0 mm / eye Ø1.1 mm (gold): Lengths 7 mm, 9 mm, 11 mm – 2 pieces each
• Ø2.4 mm / eye Ø1.5 mm (magenta): Lengths 9 mm, 11 mm, and 13 mm – 2 pieces each
• Ø2.8 mm / eye Ø1.5 mm (blue): 9 mm, 11 mm, 13 mm – 2 pieces each

The complete set contains all the necessary components for immediate use – including various anchor screw sizes and a threading aid.
