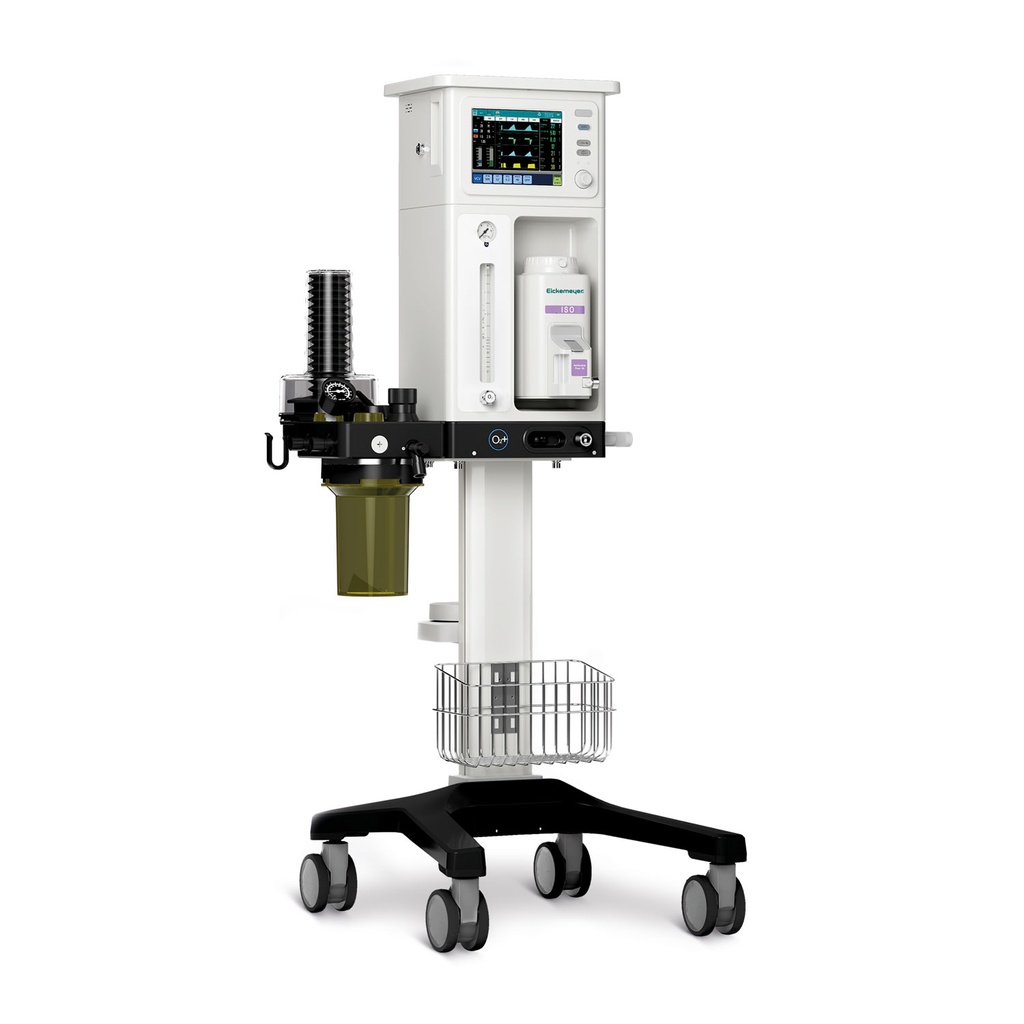

EICKEMEYER® NarkoVet® PRO anesthesia machine with ventilator (isoflurane)
Maximum safety for your patients
In small animal medicine, unnoticed apnea is the leading cause of serious anesthesia incidents. Routinely controlled ventilation drastically minimizes this risk and ensures optimal patient safety. The EICKEMEYER® NarkoVet® PRO, an anesthesia machine for small animals, offers an integrated ventilation solution powered by a high-performance electronic turbine. This small animal anesthesia machine eliminates the need for an external compressor or drive gas. To protect your patients and staff, the system performs an automatic leak test before each use. Automatic EtCO₂ ventilation control (safety update) using a capnograph is available as a retrofit kit (213045).
Anesthesia Machine
- Flowmeter (0.1–4.0 l/min)
- Precision isoflurane vaporizer (0.2–5 vol%) with Selectatec connector and safety filler, capacity 360 ml with dry wick, 300 ml with wet wick
- Oxygen bypass (O₂ flush)
- CO₂ absorbent lime container with quick-change system
- Continuously adjustable pressure relief valve
- Pressure gauge for displaying system pressure
- External fresh gas outlet for open system
- Holder for anesthesia gas filter with integrated scale
Ventilator
- Electronically controlled, no compressed air source required
- All ventilation parameters visible on a large 8" touchscreen
- Patient safety through audible and visual alarms
- Automatic calculation of ventilation volume based on weight
- Patients from 0.5–150 kg can be ventilated
- Tidal volume starting at 5 ml, for precise ventilation of smallest patients
- Ventilation rate: 4 – 100 bpm
- Tidal volume: 5 – 1,500 ml
- Maximum ventilation pressure: 3 – 50 cmH₂O
- Trigger pressure -20.0 to -1 cmH₂O
- Mains and battery operation, battery life at least 2 hours
Assisted ventilation modes
- Volume-supported ventilation (VS) - Spontaneous breathing is supported with volume ventilation
- Volume-controlled ventilation (VCV) - Total volume ventilation
- Pressure-controlled ventilation (PCV) - Total pressure-controlled ventilation
- Synchronized intermittent mandatory ventilation – pressure control (SIMV-PC) - synchronized with spontaneous breathing/pressure control
- Synchronized intermittent mandatory ventilation – volume control (SIMV-PRVC) - synchronized with spontaneous breathing/volume control
- Pressure-regulated ventilation Volume Control (PRVC) - Combination of volume- and pressure-controlled ventilation
- Continuous positive tracheal pressure / pressure support ventilation (CPAP/PSV)
- Pressure-supported ventilation (PSVPro)
Additional Specifications
- Includes tray for oxygen concentrator and patient tubing with 1-liter breathing bag, storage basket
- Dimensions (in cm): L 64 x W 67 x H 140
- Weight: approx. 44 kg
