Maximum Safety for Your Patients

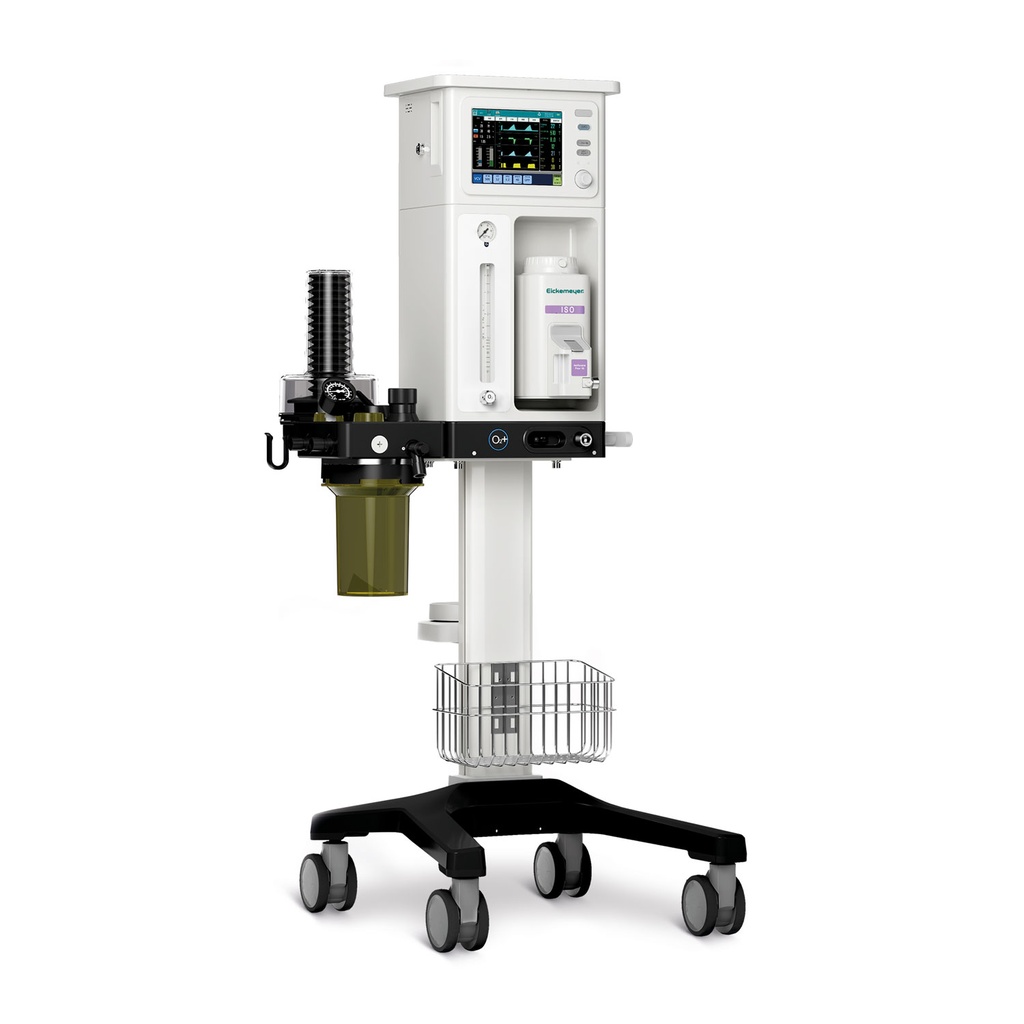

In small animal medicine, undetected apnea is the leading cause of serious anesthetic complications. Routine controlled ventilation drastically minimizes this risk and ensures optimal patient safety. The EICKEMEYER® NarkoVet® PRO is a small animal anesthesia unit featuring an integrated ventilation solution powered by a high-performance electronic turbine. This unit eliminates the need for an external compressor or drive gas. To protect both patients and staff, the system performs an automatic leak test before every use. An automatic EtCO₂ ventilation control feature (safety update) utilizing a capnograph will be available as a retrofit kit starting in October 2025. Anesthesia Machine
- Flowmeter (0.1 – 4.0 L/min)
- Precision isoflurane vaporizer (0.2 – 5 vol%) with Selectatec mount and safety filling system; capacity: 360 ml (dry wick), 300 ml (wet wick)
- Oxygen bypass (O₂ flush)
- CO₂ absorber canister with quick-change system
- Infinitely adjustable pressure relief valve
- Pressure gauge for system pressure monitoring
- External fresh gas outlet for open systems
- Holder for anesthetic gas filter with integrated scale
- Important: Please ensure the safety filling adapter (21304003) is ordered as well
Ventilator
- Electronically controlled; no compressed air source required
- All ventilation parameters displayed on a large 8" touchscreen
- Patient safety ensured via audible and visual alarms
- Automatic calculation of ventilation volume based on weight
- Suitable for patients weighing 0.5 – 150 kg
- Tidal volume starting at 5 ml for precise ventilation of the smallest patients
- Respiratory rate: 4 – 100 bpm
- Tidal volume: 5 – 1,500 ml
- Maximum ventilation pressure: 3 – 50 cmH₂O
- Trigger pressure: -20.0 to -1 cmH₂O
- Mains and battery operation; battery life: min. 2 hours
Supported Ventilation Modes
- Volume-supported ventilation (VS) – Spontaneous breathing supported by volume ventilation
- Volume-controlled ventilation (VCV) – Full volume ventilation
- Pressure-controlled ventilation (PCV) – Full pressure-controlled ventilation
- Synchronized intermittent... Mandatory ventilation – pressure-controlled (SIMV-PC) – synchronized with spontaneous breathing / pressure-controlled
- Synchronized Intermittent Mandatory Ventilation – volume-controlled (SIMV-PRVC) – synchronized with spontaneous breathing / volume-controlled
- Pressure-Regulated Volume Control (PRVC) ventilation – combination of volume-controlled and pressure-controlled ventilation
- Continuous Positive Airway Pressure / Pressure Support Ventilation (CPAP/PSV)
- Pressure Support Ventilation with backup (PSVPro)
Additional specifications
- Includes mounting tray for oxygen concentrator and patient circuit with 1 L breathing bag, storage basket
- Dimensions (in cm): L 64 x W 67 x H 140
- Weight: approx. 44 kg
- 2-year warranty
