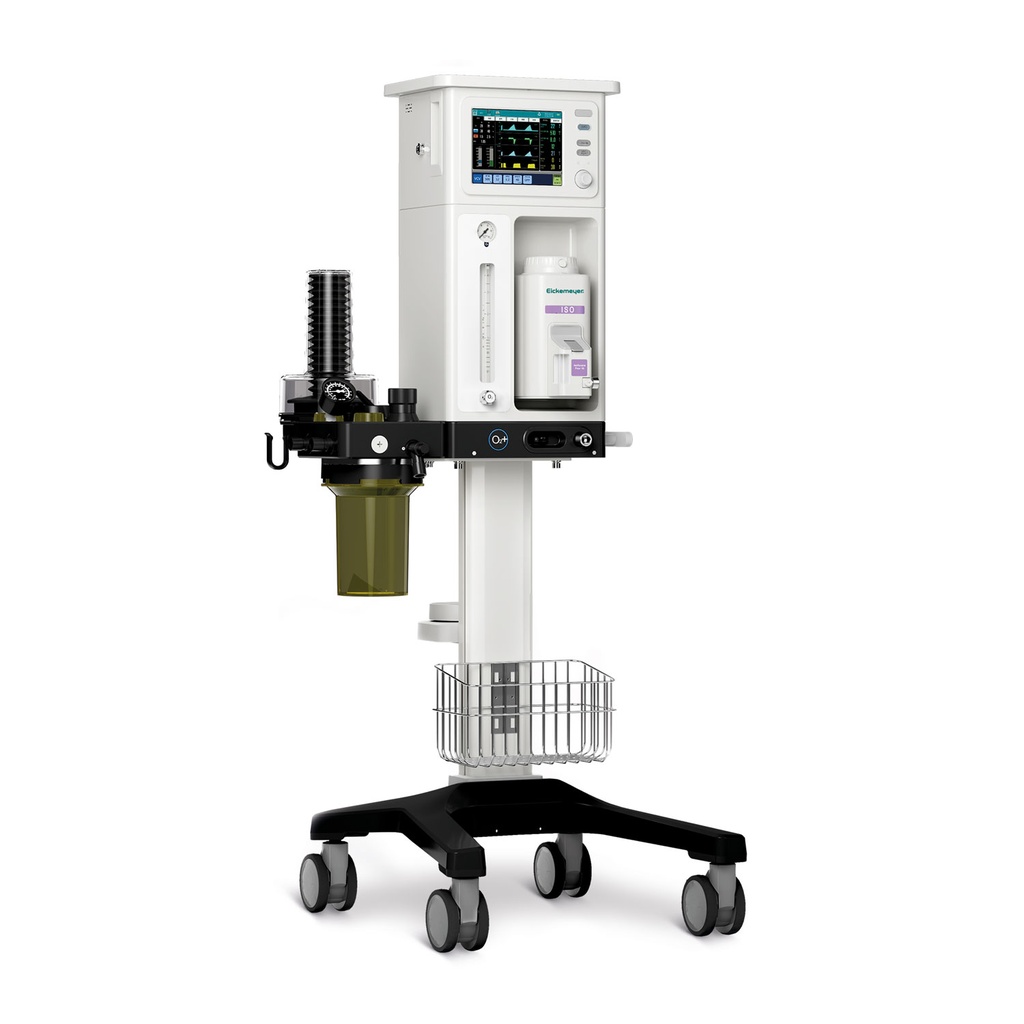

EICKEMEYER® NarkoVet® PRO anesthesia machine with ventilator (Sevoflurane)
Maximum safety for your patients
In small animal medicine, unnoticed apnea is the leading cause of serious anesthesia incidents. Routinely controlled ventilation drastically minimizes this risk and ensures optimal patient safety. The EICKEMEYER® NarkoVet® PRO, an anesthesia machine for small animals, offers an integrated ventilation solution powered by a high-performance electronic turbine. This small animal anesthesia machine eliminates the need for an external compressor or drive gas. To protect your patients and staff, the system performs an automatic leak test before each use. Automatic EtCO₂ ventilation control (safety update) using a capnograph will be available as a retrofit kit starting in June 2025.
Anesthesia Machine
- Flowmeter (0.1–4.0 l/min)
- Precision sevoflurane vaporizer (0.2–5 vol%) with Selectatec connector and key filler, capacity 360 ml with dry wick, 300 ml with wet wick
- Oxygen bypass (O₂ flush)
- CO₂ absorbent lime container with quick-change system
- Continuously adjustable pressure relief valve
- Pressure gauge to display system pressure
- External fresh gas outlet for open system
- Holder for anesthetic gas filter with integrated scale
Ventilator
- Electronically controlled, no compressed air source required
- All ventilation parameters visible on a large 8" touchscreen
- Patient safety through audible and visual alarms
- Automatic calculation of ventilation volume based on weight
- Patients from 0.5–150 kg can be ventilated
- Tidal volume starting at 5 ml, for precise ventilation of smallest patients
- Ventilation rate: 4 – 100 bpm
- Tidal volume: 5 – 1,500 ml
- Maximum ventilation pressure: 3 – 50 cmH₂O
- Trigger pressure: -20.0 to -1 cmH₂O
- Mains and battery operation, battery life at least 2 hours
Supported Ventilation Modes
- Volume Support Ventilation (VS) - Spontaneous breathing is supported with volume ventilation
- Volume Control Ventilation (VCV) - Total Volume Ventilation
- Pressure Control Ventilation (PCV) - Total Pressure-Control Ventilation
- Synchronized Intermittent Mandatory Ventilation - Pressure Control (SIMV-PC) - Synchronized with spontaneous breathing/pressure-controlled
- Synchronized Intermittent Mandatory Ventilation - Volume Control (SIMV-PRVC) - Synchronized with spontaneous breathing/volume-controlled
- Pressure-Regulated Volume Control Ventilation (PRVC) - Combination of volume- and pressure-controlled ventilation
- Continuous Positive Tracheal Pressure / Pressure Support Ventilation (CPAP/PSV)
- Pressure Support Ventilation Protection (PSVPro)
Additional Specifications
- Includes an oxygen concentrator tray and 1-liter patient tubing Breathing bag, storage basket
- Dimensions (in cm): L 64 x W 67 x H 140
- Weight: approx. 44 kg
