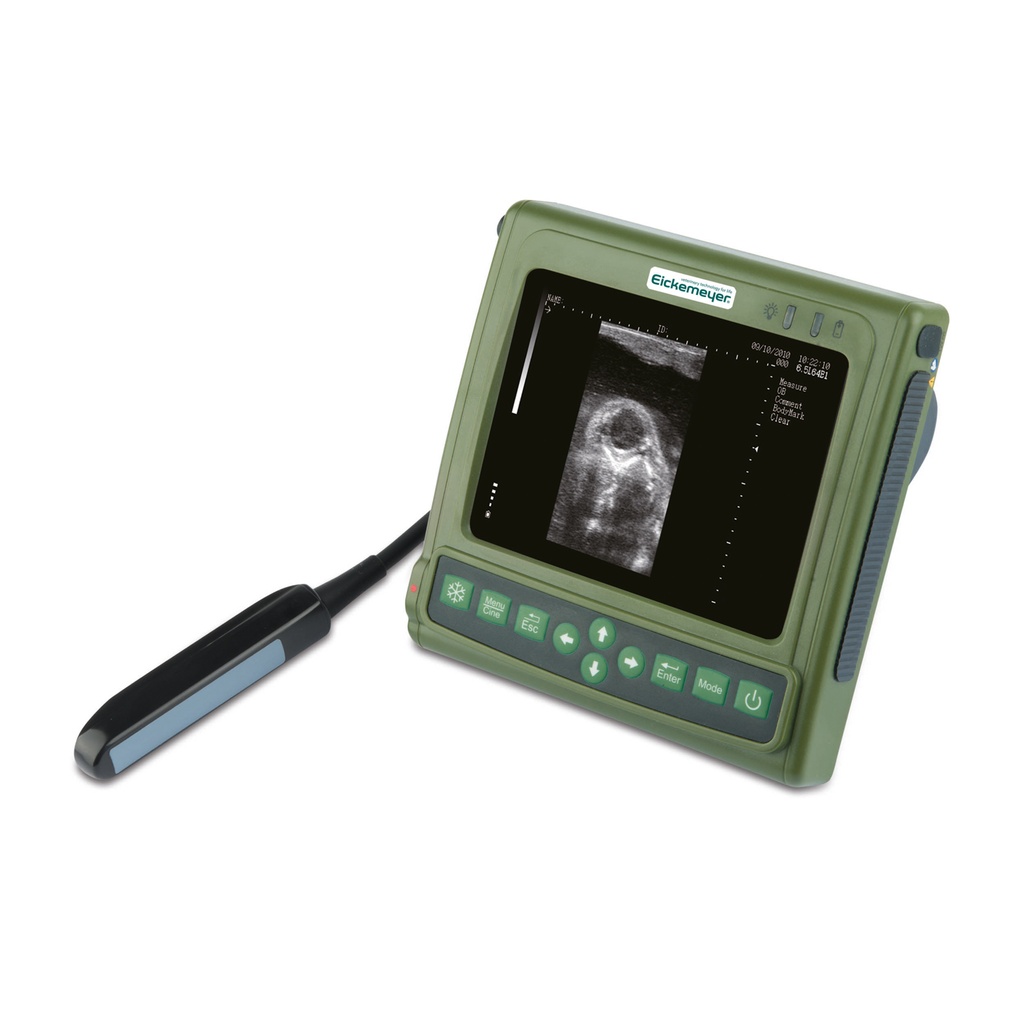

Magic 500 PLUS Portable Ultrasound Machine

The MAGIC 500 PLUS sets a new standard of mobility for pregnancy testing in the field. With only 1.1 kg and an integrated rechargeable battery, it ensures maximum comfort and user friendliness

Features:

• Long service life: due to the long battery life of the battery supplied, unforeseen extended scanning sessions are not a problem.
• Efficient workflow: Performing measurements on stored images ensures an efficient examination process
• Via a WiFi connection images and videos can be transmitted wirelessly to external devices (PC, laptop, tablet, smartphone) as well as monitors
• Higher diagnostic reliability with Cine Memory (256 frames)
• Individually adjustable ultrasound image
• Protection by splash-proof venting and membrane keypad
• Mounting rings and straps for easy hanging around the neck

Areas Of Application:

Pregnancy examinations in cattle and horses

Adjustment aids for optimal work

• Standard measurements and vet pregnancy calculation
• Anti-reflective ultrasound image individually adjustable
• Measurements below 1 mm possible (fat layer thickness measurement)
• Back fat and loin thickness calculation

Technical specifications:

• 15cm LED Monitor
• Black-and-white system
• Images and video clips can be saved on the device
• Incl. a switchable, changeable transducer 6.5 MHz, linear rectal, frequency switching of: 4.5 / 5.5 / 6.5 / 7.5 MHz
• Incl. a glove for the left hand (right glove can be reordered)
• Incl. Carrying case
• Integrated battery with up to 5 hours runtime
• Dimensions (in cm): W 16 x H 16 x D 7
• Weight: 1.1 kg
