X-Ray Machine HiRay 30 Stationary Unit, 150 x 95 x 200 cm

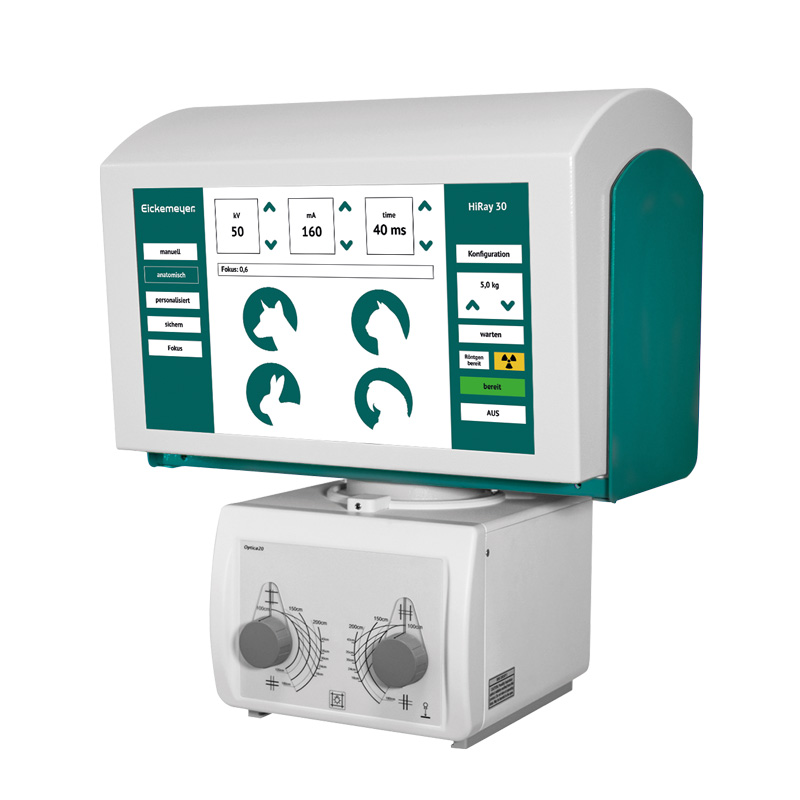

The HiRay 30 high-frequency X-ray unit combines the latest technology, proven reliability and amazing simplicity with an attractive design. The device is designed for use with the latest digital X-ray systems and the 15-inch touchscreen display allows clear and simple control of all functions. The automatic anatomy program provides 100 pre-programmed body parts for dog, cat, pet animals, reptiles and birds. The "floating" table top has a generous travel path, which greatly simplifies patient positioning.

• Generator power: 11-30 kW, 40 Hz
• Rotary anode: 50 Hz, 2,800 rpm (HF)
• kV values: Infinitely adjustable from 40 to max. 125 kV, 400 mA
• mAs values: Adjustable from 0.6 to 80 mAs
• Exposure times: 0.002 to 2 seconds
• Focus: 0.6 (1 kW) or 1.3 (30 kW)
• 2-point technology (kV - mAs) and 3-point technology (vK - mA - time)
• Patient weight and layer thickness adjustable
• Floating tabletop, L 150 x W 72 cm, 78 cm high, with 60 cm longitudinal and 20 cm lateral displacement, mechanically braked, with 4 fixing clamps
• Self-adjusting Buckylade, 45 x 45 cm
• LED licollimator light with automatic switch-off up to 90 sec.
• Power supply: 220 volts, 16 A
• Footswitch incl. 6 m cable
• USB port for software updates
• Dimensions (in cm): L 150 x W 95 x H 200
• Optional: X-ray tube height adjustable and rotatable (± 90 °)
