For digital X-ray imaging in the mobile equine practice
The DigiVet® DR Equine WLAN panel set impresses with its simple operation, fast, wireless transmission speed and razor-sharp, high-resolution X-ray images.
- Active area of 25 x 30 cm (10 x 12")
- Highest resolution through CsI PLUS scintillator
- High spatial resolution with a field size of 124 µm for each pixel
- Fast, wireless data transmission via WLAN
- Stable and reliable automatic exposure detection (Anytime™)
- Direct communication with smart devices (Inside AP™)
- Viewer software runs on the Windows™ operating system (VXvue™)
- Areas of application: horse and cephalometrics
Technical specifications:
- Scintillator: CsI (DQE technology for reduced dose)
- Pixel pitch: 124µm x 124µm
- Resolution: > 4 lp/mm
- Active area: 2048 x 2560 pixels
- Analog to Digital Conversion (AD Conversion): 16 bits
- Grayscale: 16,384 levels
- X-ray voltage range: 40 – 150 kVp
- X-ray generator interface: Automatic trigger: AED (Automatic Exposure Detection) mode
- Wireless interface: IEEE 802.11ac (2.4GHz / 5GHz dual band)
- Image acquisition time (by cable): 1.5 sec.
- Image acquisition time (via WiFi): 3 sec.
- Battery : Lithium Ion, 3,400 mAh, 8 hours standby or approx. 750 shots
- Dimensions (in cm): L 28.7 x W 35 x H 1.5
- Weight: 2.1kg

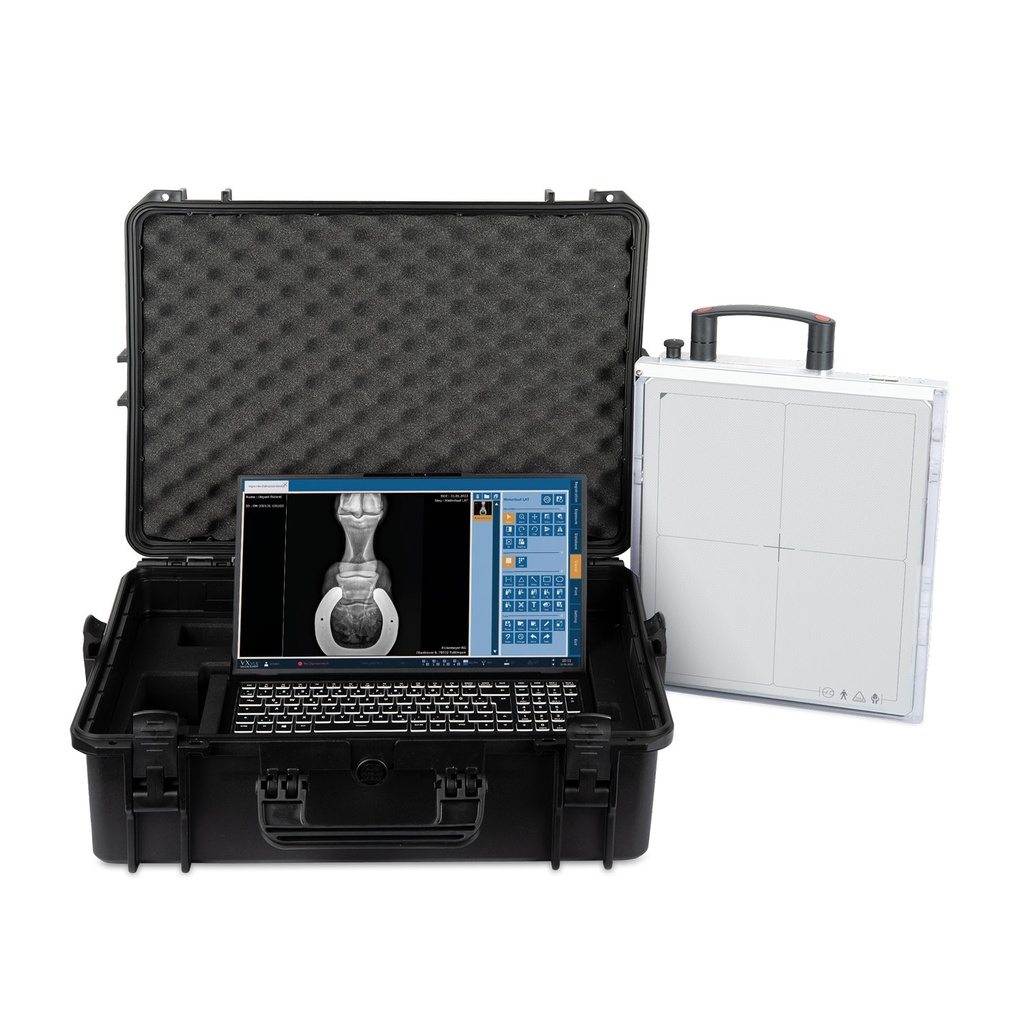

Set consists of:
- DigiVet® DR Equine WiFi panel
- VXvue™ image editing software
- High-end notebook with 15.6'' full HD monitor
- PODOBLOCK® protection box
- Outdoor case for all components
