High-end technology combined with built-in learning tools

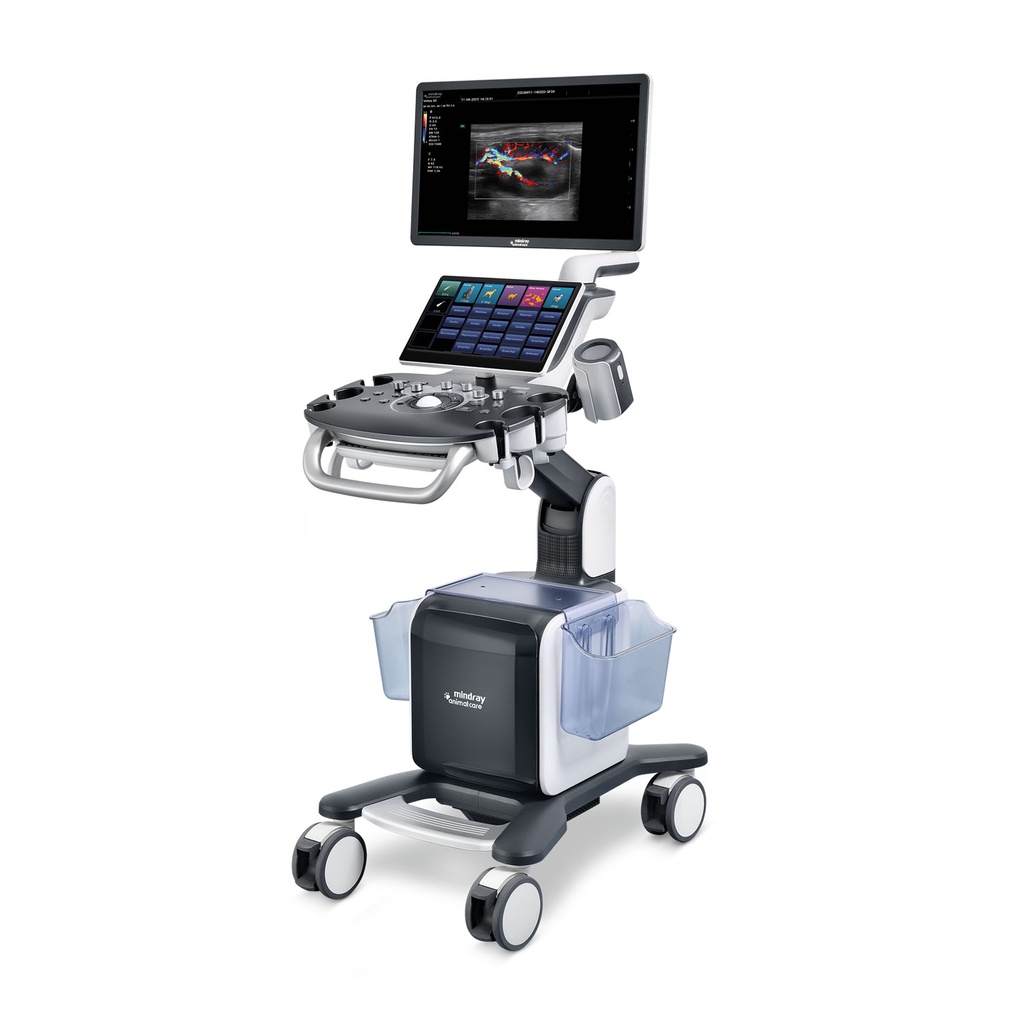

The Vetus 50 is a new veterinary ultrasound system providing outstanding images, intelligent tools, and innovative designs. Equipped with next-generation ultrasound platform ZST+ and 3T transducer technology with ComboWave, the Vetus 50 offers accurate performance for scanning of different animals.
Special features
- ZST+ and ComboWave technology: processing acoustic signals
- 3T technology: higher frequency bandwidth
- iScanHelper: helpful built-in tutorial for beginners and experienced users
- Quick selection of probes and working modes
- Reduced number of buttons for a better overview
- Protected, anti-splash control panel
- Easy patient management and archiving
- Very quiet operation at >26 dB (25 °C)
- iStation™: simple patient data management
- iClear™: optimised image resolution
- iZoom™: full screen mode
- iBeam™: improved image resolution in real time
- iTouch™: automatic image enhancement
- 8-fold TGC: manual compensation of signal strength over the entire penetration depth
- THI and PSH: Reduction of artifacts and improved contrast resolution
- Colour, PW and power Doppler
Technical data
- 21.5" Full HD LED monitor, with articulated arm
- Additional 13.3" multi-gesture touch screen
- Image export to Windows formats (DICOM Send, DICOM Worklist)
- Large internal memory: 1 TB (equivalent to approx. 1 million images)
- 4 probe connections
- Dimensions (in cm): W 54.3 x H 113 x D 81

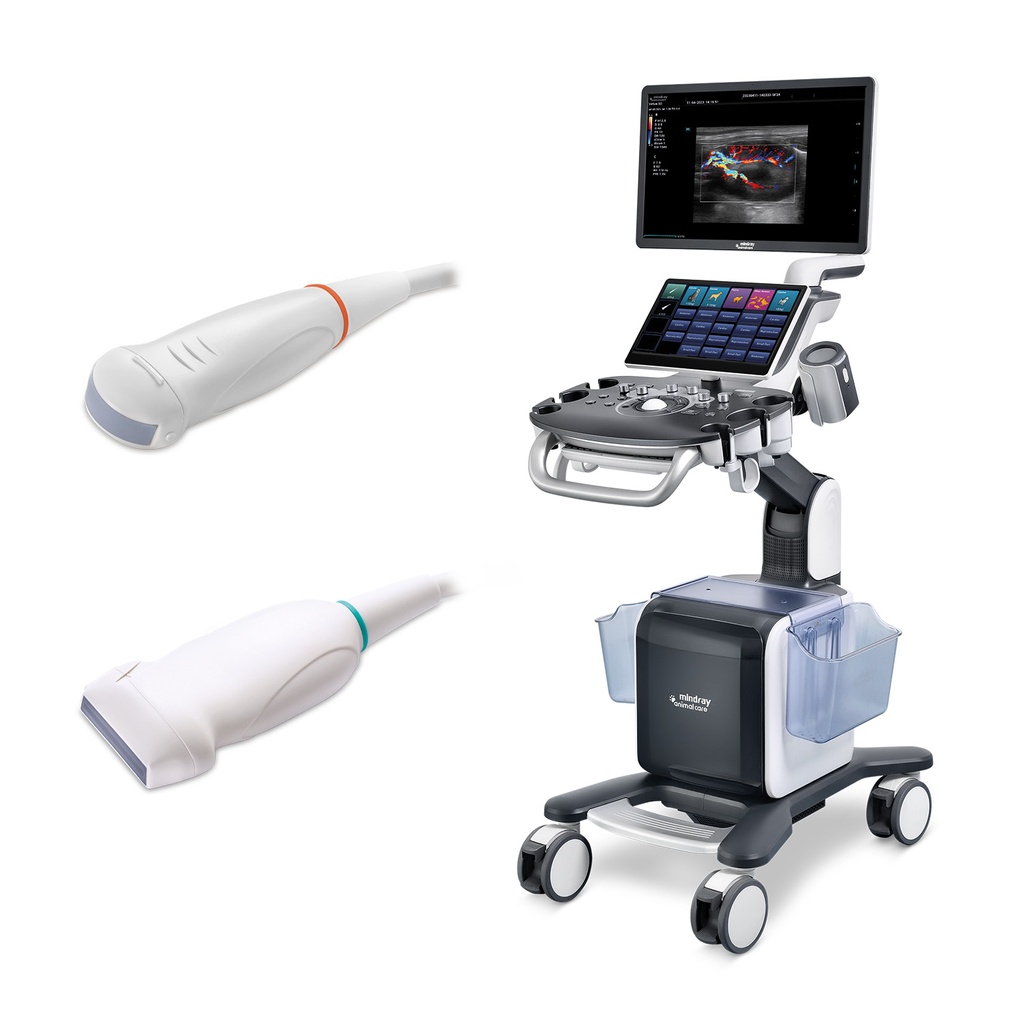

- Weight: approx. 65 kg Probes included in the package

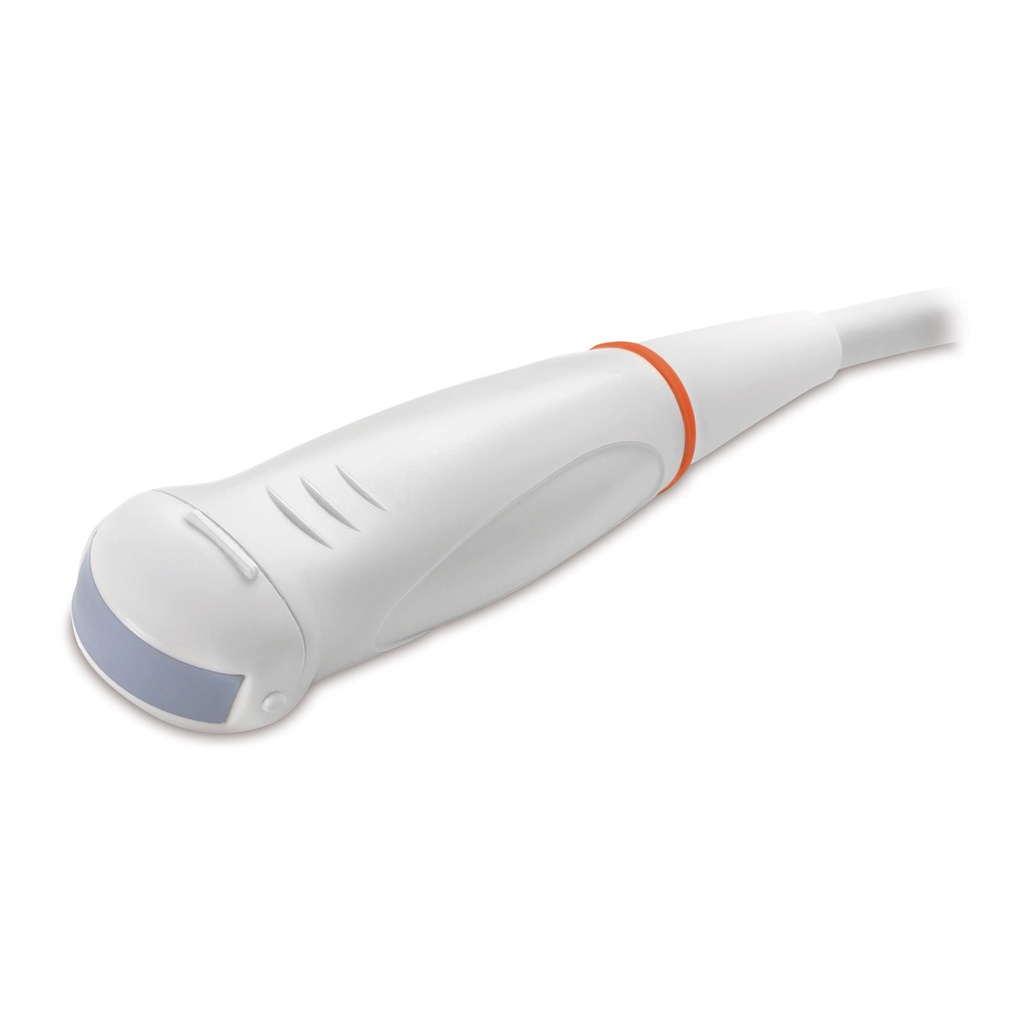

- Micro-convex: 2.6 – 12.8 MHz (C11-3 / Art. No. 30452602)

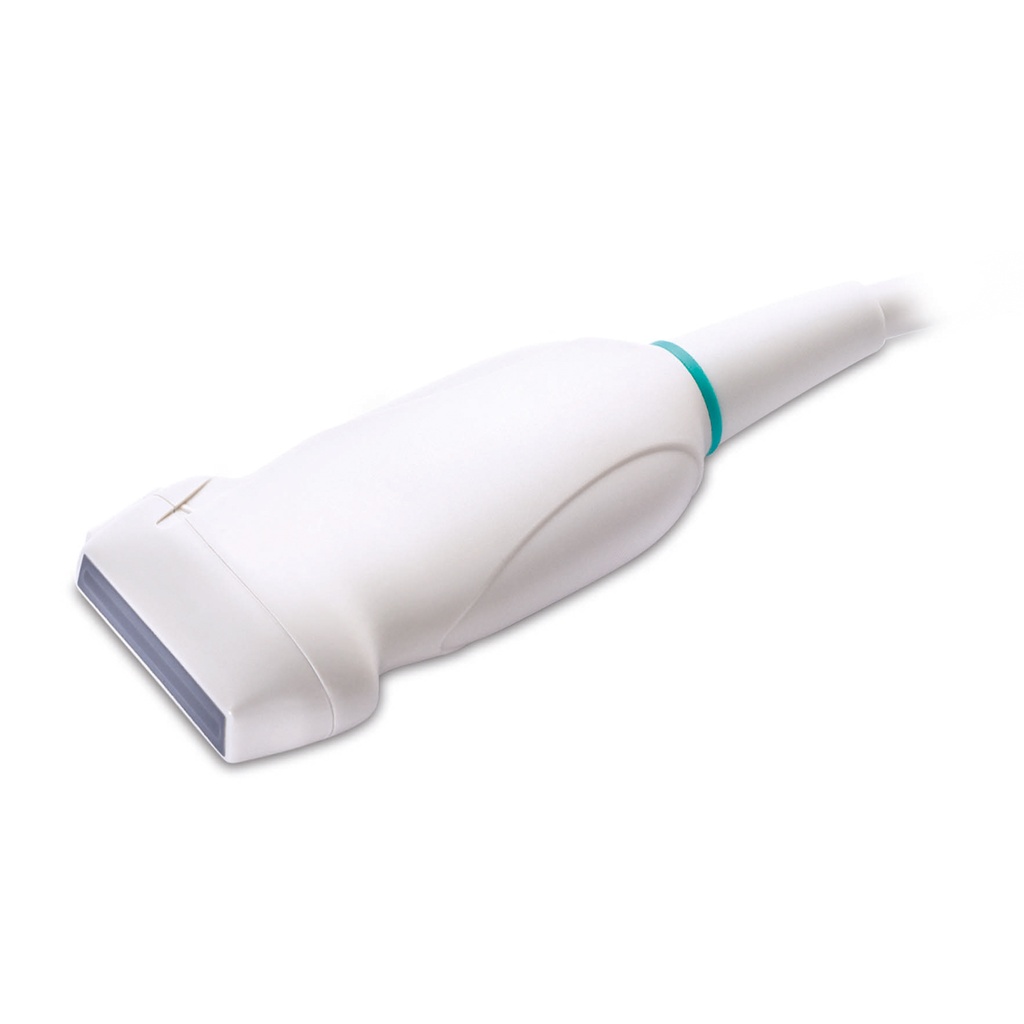

- Linear T-shaped: 3.0 – 13.0 MHz (L13-3 / Art. No. 30452601)
- Other probes available
