Most modern high-end ultrasound system

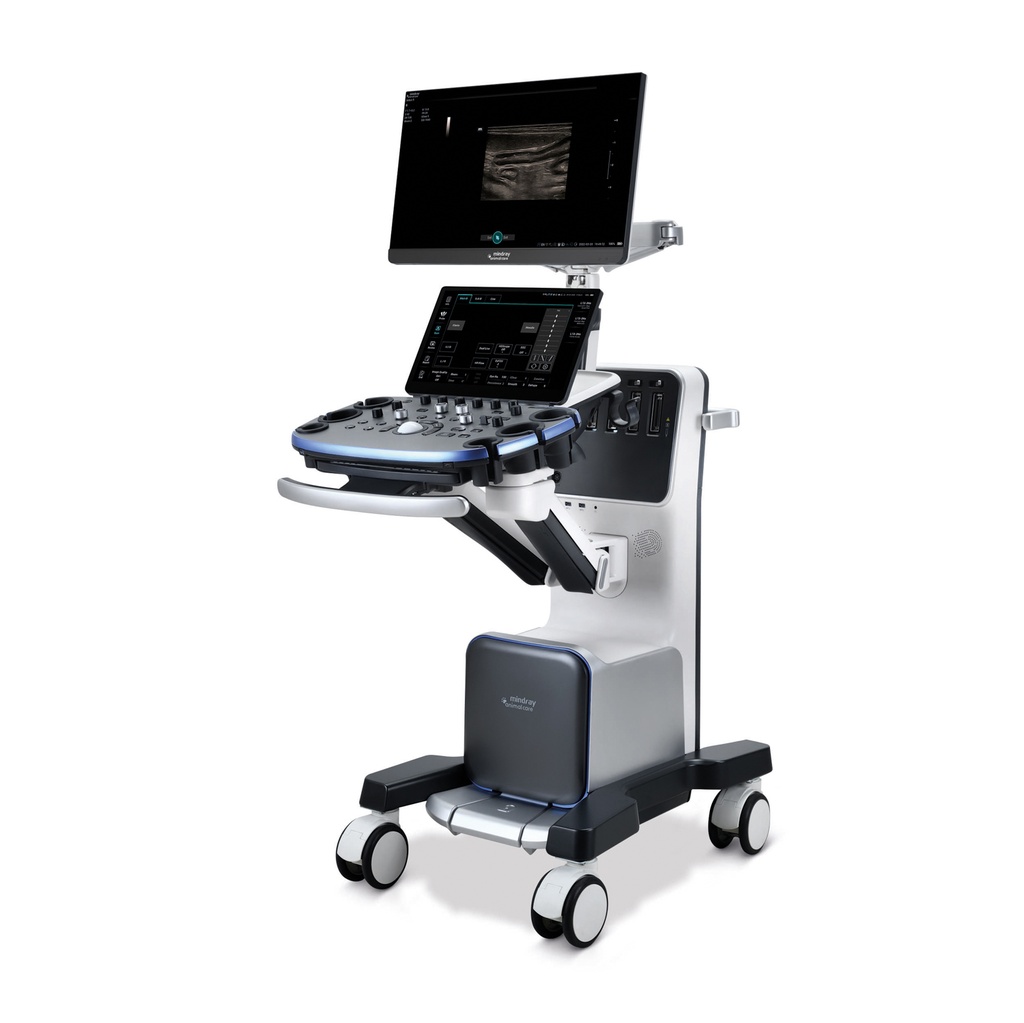

The Vetus 9 from Mindray, which was specially developed for use in specialist veterinary practices, is a top-class ultrasound device with the most modern, highly developed and powerful technologies. While some systems are optimized for abdominal OR cardiology applications, the Vetus 9 has been designed to handle all aspects of veterinary imaging equally, providing an excellent one-system solution for all your imaging needs.
Powerful ZST+ platform
The patented ZONE Sonography® Technology+ (ZST+) is an extraordinary innovation – a true evolution of ultrasound. The software-controlled technology breaks through the boundaries of conventional imaging. By using imaging zones, ZST+ is able to utilize significantly more ultrasound data than traditional, hardware-based beam forming. This advanced acoustic data set is processed in real time through digital processing techniques and software algorithms, resulting in crystal clear imaging with extremely fast and accurate representation.
Superior image quality
The Vetus 9 offers outstanding imaging solutions for specialized applications with extreme clarity, outstanding intelligence and outstanding diagnostic tools. In the abdominal area, Sound Touch Elastography (STE) can be used at this point, which enables real-time 2D shear wave elastography and thus quantitative analysis based on the assessment of tissue stiffness. In cardiology, the simultaneous analysis of 8 myocardial regions offers the possibility of quantitative analysis of myocardial movement, deformation and synchronization.
Special Features
- Raw data editing
- ZONE Sonography Technology: automatic focus zone
- iScanHelper: Explanation of the scanning technique and display of the ultrasound image with labeling
- Smart 3D™: three-dimensional display
- Glazing Flow: 3D color Doppler
- Cardio measurements: Simpson, Cornell, Teichholz
- Echo Boost™ for cardiac examination
- Free Xros M™: anatomical M mode
- Phased array probe with single crystal technology (SP5-1s) optionally available
Setting aids for optimal work
- iStation™: easy patient data and findings management
- iClear+: highly optimized image resolution
- Zoom / iZoom™: Full screen mode
- iBeam™: improved image resolution in real time
- iTouch™: automatic image enhancement
- Digital 8x TGC: manual compensation of signal strength over the entire penetration depth
- THI and PSH: Reduction of artifacts and improved contrast resolution
- Color, PW, CW and power Doppler
- TDI Tissue Doppler: Tissue Doppler
- Vet software (bodymarks, pregnancy measurement)
Technical data
- LED monitor, 23.8 "Full HD, 60.5 cm diagonal, with multi-directional articulated arm
- 16.5 "Additional touchscreen, 42 cm diagonal
- Image export to Windows formats (DICOM Send, DICOM Worklist)
- Large internal storage: 1 TB (equivalent to approx. 1 million images)
- Retro and post-view video storage across all applications
- 5 probe ports
- Dimensions (in cm): W 54.5 x H 100 x D 102
- Weight: approx. 107 kg
Transducers included in package

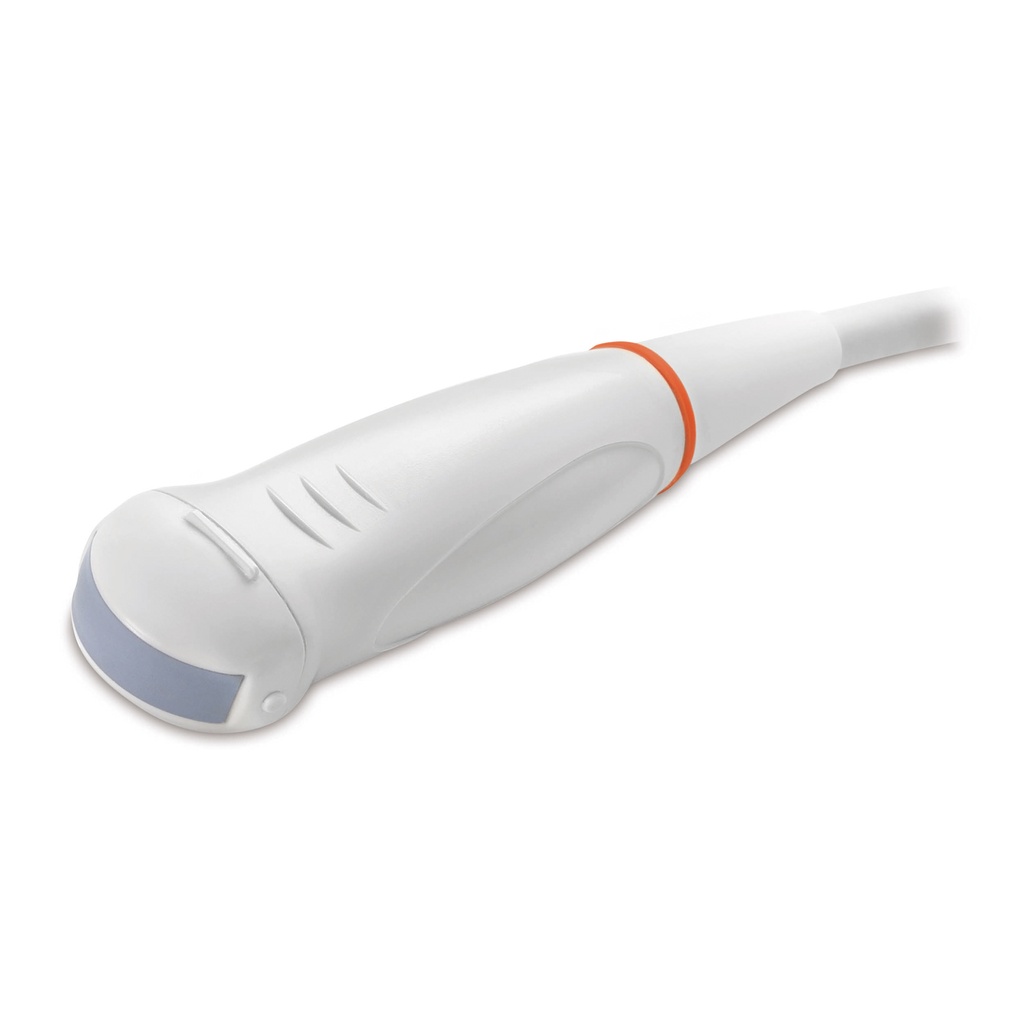

- High definition micro-convex: 2.6 – 12.8 MHz (C11-s / Art. No. 305056)

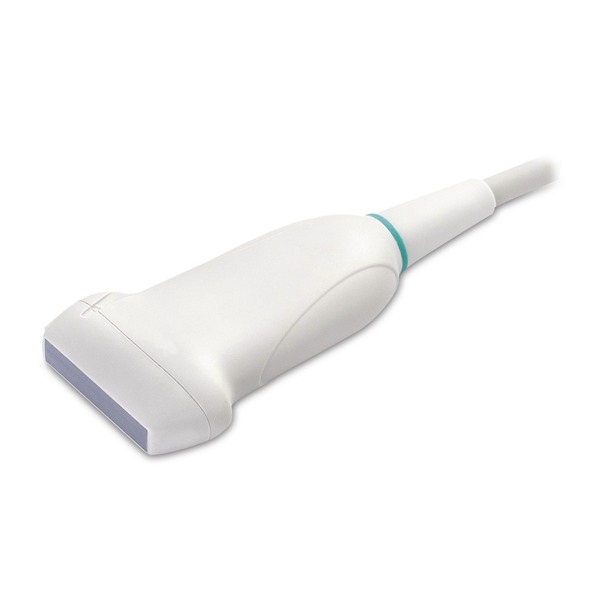

- High definition linear T-shaped: 3.0 – 13.0 MHz (L13-3Ns / Art. No. 305092)

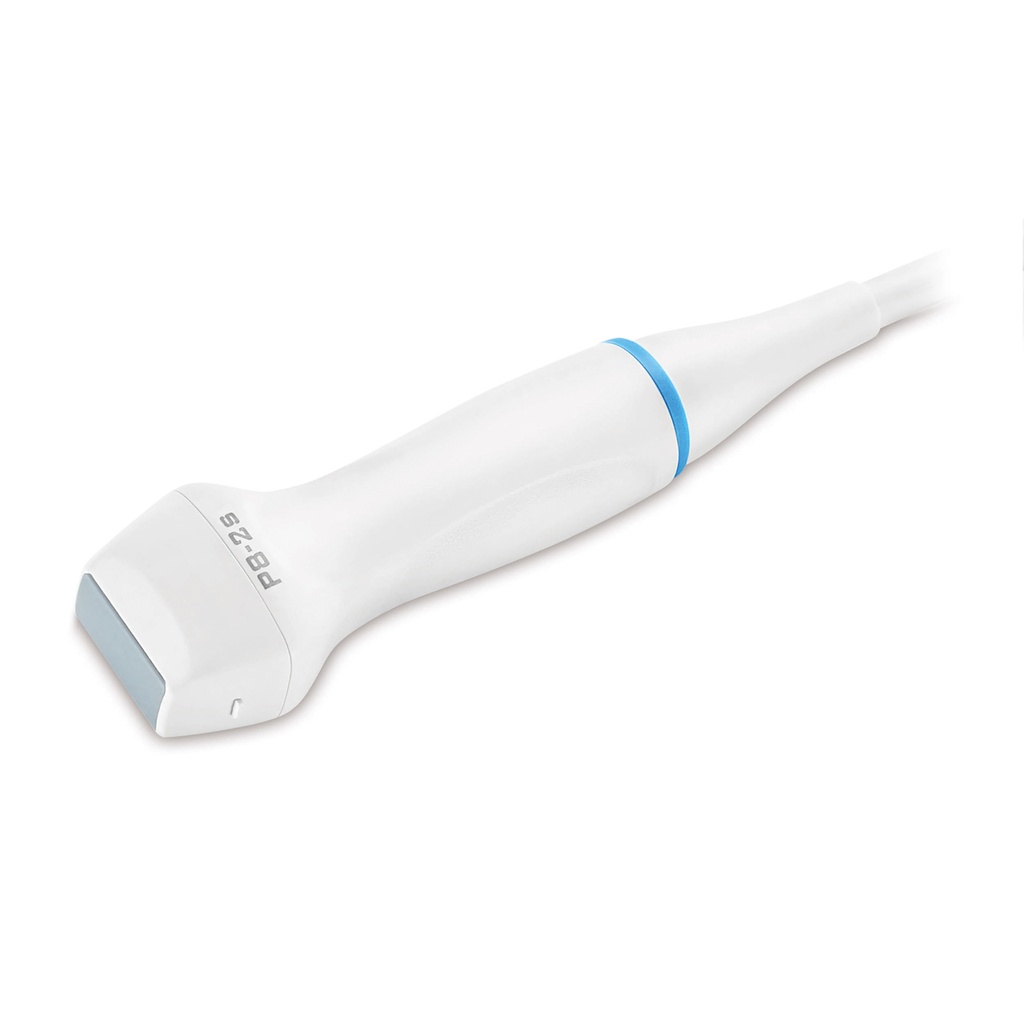

- Phased array: 2.3 – 8.0 MHz (P8-2s / Art. No. 305058)

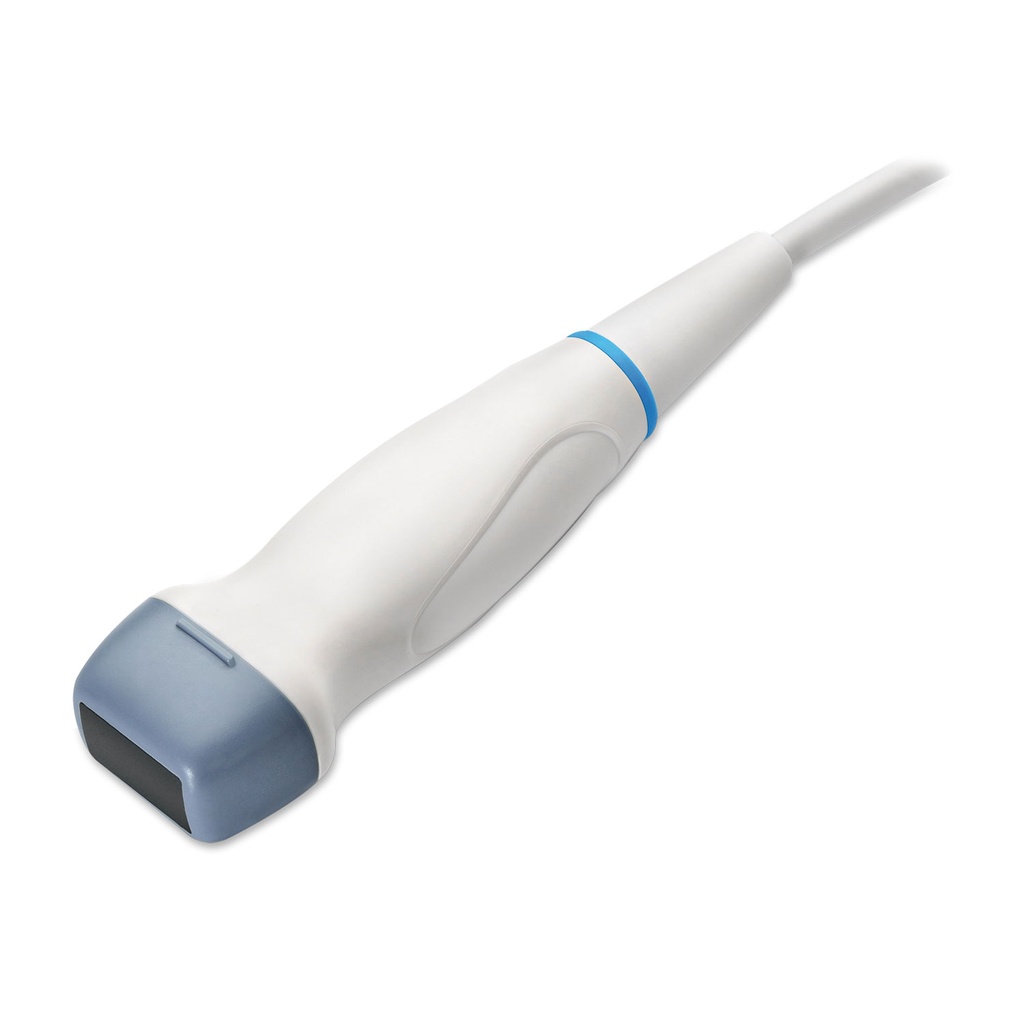

- Phased array single crystal: 1.5 – 4.5 MHz (SP5-1s / Art. No. 305091)
Take advantage of our attractive 0% leasing offers during the promotional period until September 30, 2024. We would be happy to send you an offer - please contact us.
This product is not available in Austria.
