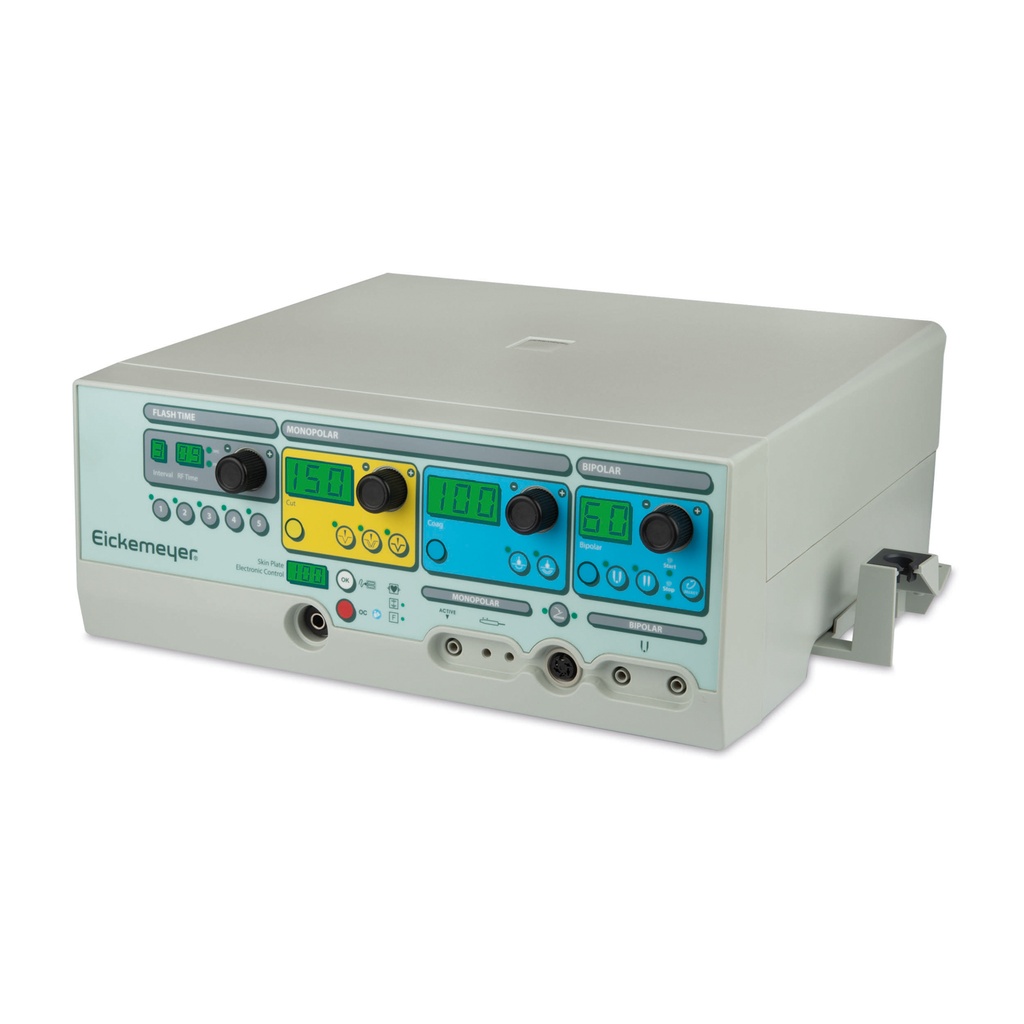

The EickTron 4.0 is a versatile veterinary radiosurgical device with an operating frequency of 600 KHz – 4.0 MHz. The unit's digital display and microprocessor-based monitoring of operating functions guarantee absolute reliability and easy operation.
The connection of the neutral electrode is continuously checked for safety.
Radiosurgery is the minimally invasive form of electrosurgery, because the devices operate at significantly higher frequencies than electrosurgical devices – here up to 4.0 MHz!
Due to the high frequency, less wattage can be used, resulting in significantly less thermal damage to the surrounding area
tissue.
Complete with:
- Handpiece with finger switch and connection cable
- Set of electrodes (10 pieces)
- 2 needle, blade and ball electrodes each
- Neutral and rectal electrode incl. cable
- Foot switch
Specifications
- Max. Output 150 W (cutting)
- Max. Output 100 W (blend / enhanced / coagulation)
- Max. Output 100 W (soft coagulation)
- Max. Output 60 W (bipolar coagulation)
Technical data
- Power consumption: 350 VA
- Frequency: 600 KHz – 4.0 MHz
- Dimensions (in cm): W 37 x H 14.4 x D 31.9

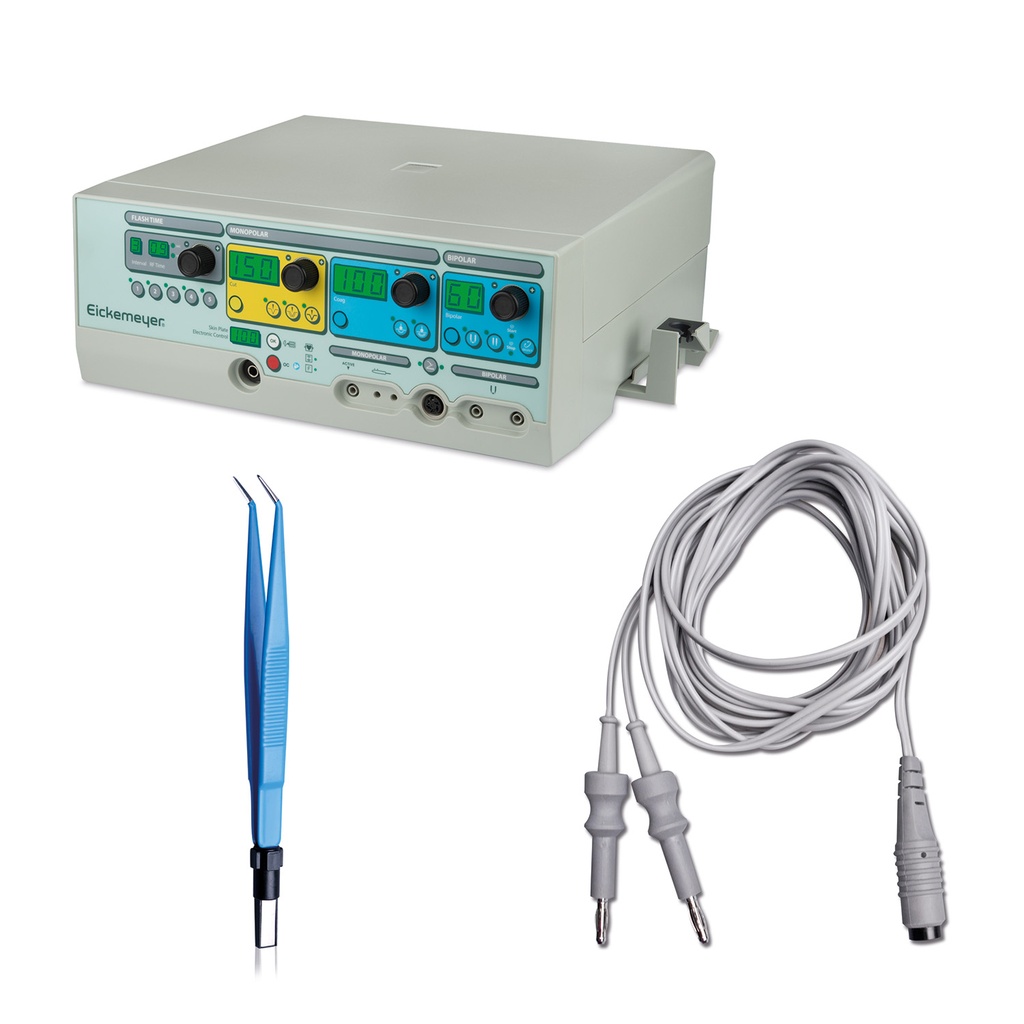

Package offer:
- Eicktron 4.0 radiosurgery device

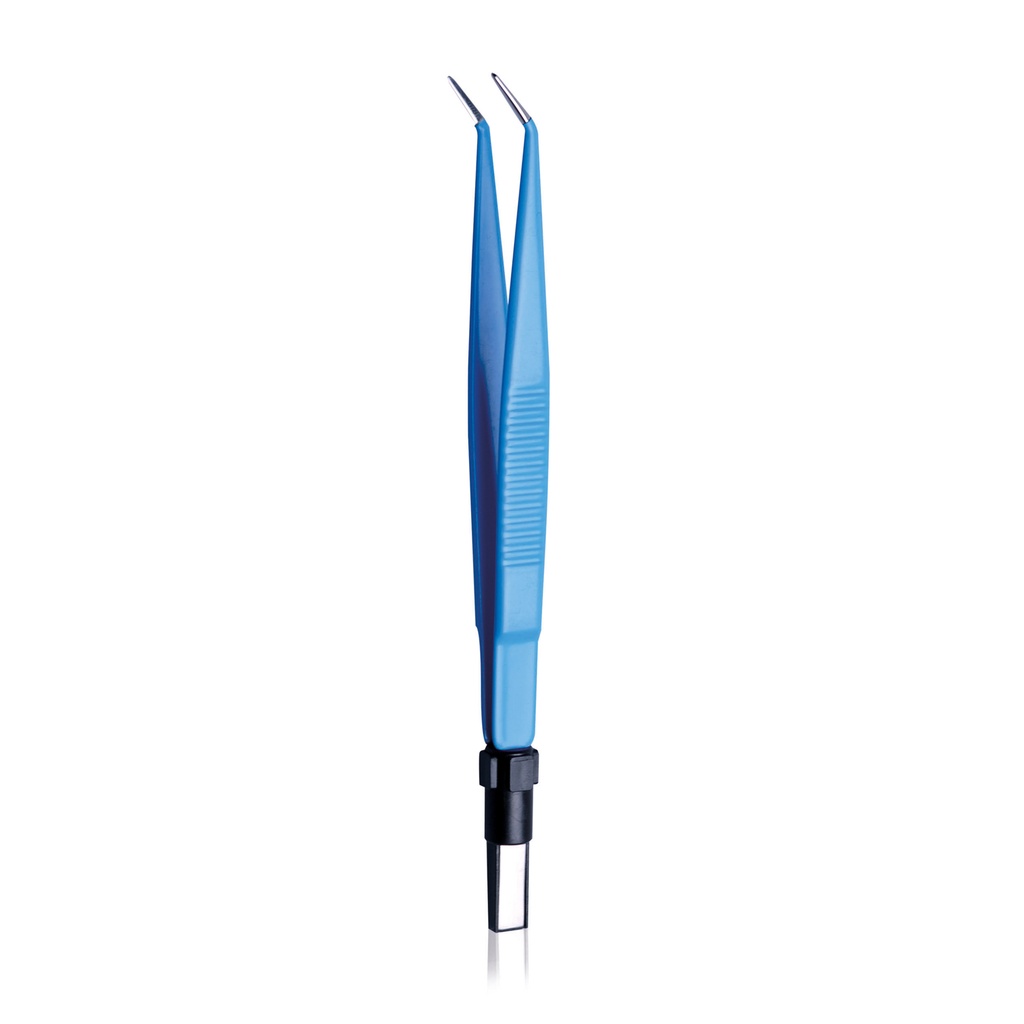

- Bipolar tweezers: angled, 150 mm length

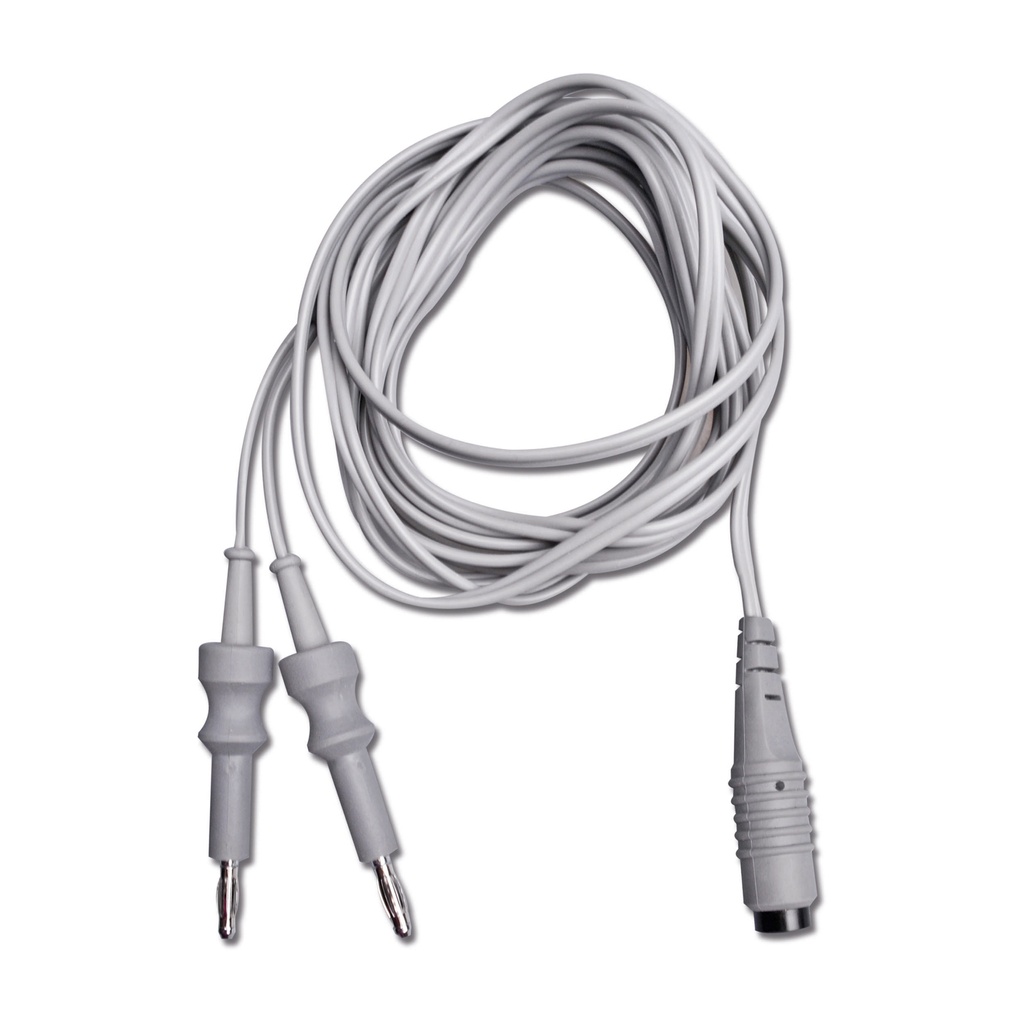

- Bipolar connection cable for instruments with plug
