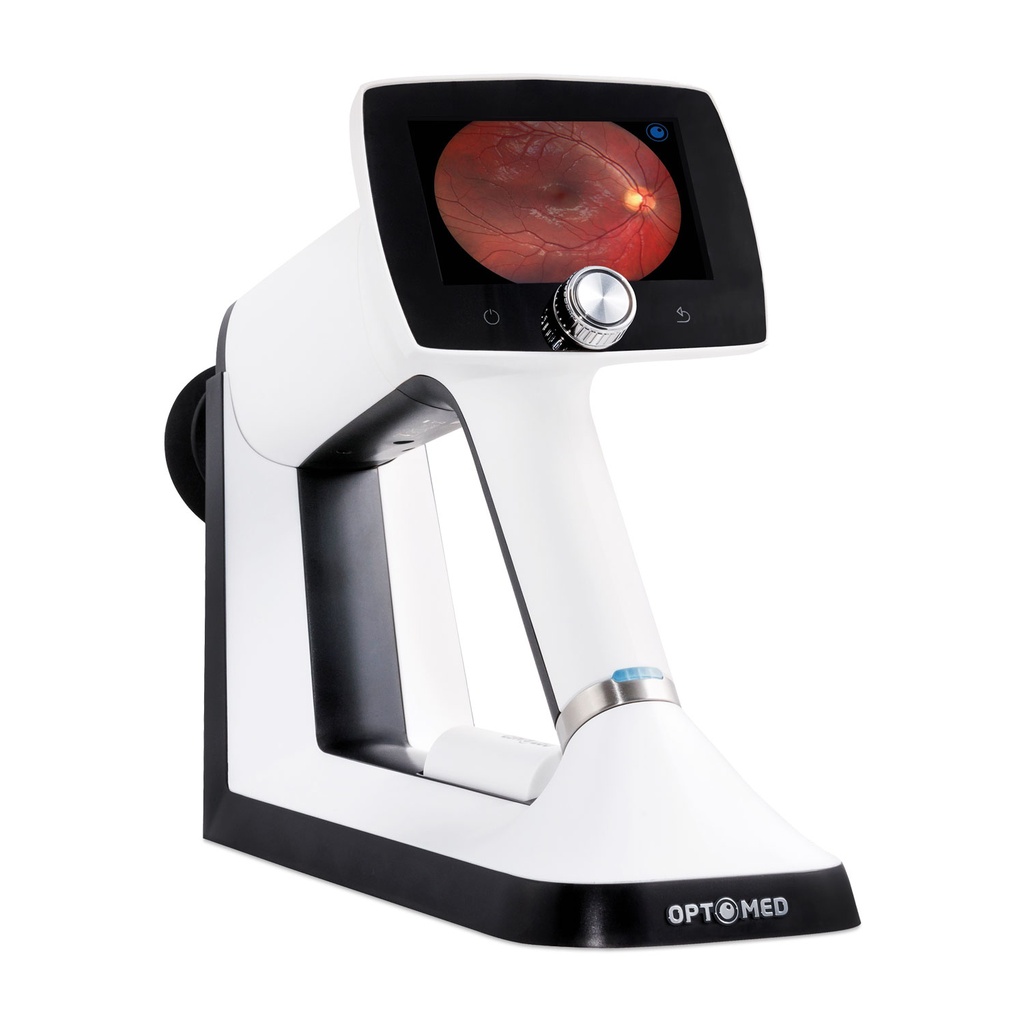

The portable, patented AURORA® IQ fundus camera is a high-end retinal imaging device for the most demanding of needs. The user-friendly technology and large screen for instant display of high-quality retinal images, even with non-dilated pupils, make this device a must-have for every ophthalmologist. The included ocular surface lens has adjustable illumination levels, colour imaging and cobalt blue for fluorescence imaging. Choose between autofocus or manual operation as desired.
- Complete set including anterior module
- Non-mydriatic application possible in a darkened room
- Fast image capture with autofocus or manual operation
- Real-time visibility of the retina
- Large screen
- High-quality retinal imaging with high-contrast optical design
- Detailed examination with 50° field of view
- Ocular surface lens for color imaging and cobalt blue for fluorescence imaging
- Adjustable illumination levels
- Transfer to the digital patient file via WLAN and USB
- Low-noise application
- 2-year guarantee (excluding batteries)
- Scope of delivery: AURORA® IQ fundus camera, retinal module, anterior module, 2 batteries, power supply, cleaning cloth, 2 eyecups, charging station, USB cable, client software for image transfer, carrying case
Technical specifications
- Type: non-mydriatic digital fundus camera
- Field of view: 50° (total field of view: 50 x 40)
- Resolution of the camera sensor: 5 MP
- Optical resolution: >60 lp/mm (ISO10940:2009)
- Manual and automatic focus mode
- Minimum pupil size: 3.1 mm
- Image format: JPEG
- Video format: MPEG-4
- Display TFT-LCD: 4", 800 x 480 pixels
- Memory: 16 GB
- Rechargeable 3.63 V / 2,600 mAh Li-ion batteries
- Operating time: approx. 2 hours with continuous use
- Connectivity: WLAN and USB
- Colour, red-free and IR photography
- Camera dimensions (in mm): W 122 x H 202 x L 98
- Retinal module dimensions (in mm): W 68 x H 74 x L 160
- Anterior module dimensions (in mm): W 71 x H 80 x L 79
- Camera weight: 526 g
- Weight of retinal module: 327 g
- Weight of anterior module: 105 g
